SurgiSonic® Cleaning Machines
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price
No. 1211x / SurgiSonic® Ultrasonic Cleaning Machine
5 Gallon tank 400 watts
Counter Top Size: 34” wide X 16” deep X 16.5” high
Internal Tank Size: 30” wide X 8” deep X 6”high
88-Lbs
36X20X19
1
Call for Price
No. 1215X / SurgiSonic® Replacement Tank
5 Gallon tank 400 watts
Counter Top Size: 34” wide X 9” deep X 11” high
Internal Tank Size: 30” wide X 8” deep X 6”high
49-Lbs
36X20X19
1
Call for Price
The SurgiSonic® ultrasonic/suction surgical instrument cleaning machine includes a 5 gallon tank, a stainless steel basket and lid, a 30 minute timer switch, heater, 6 suction chambers, 6 each small/medium/large hole nipples, 6 filters, 6 pumps, a SurgiScrub® suction chamber kit for cleaning robotic instruments, 10’ of drain tubing, an operating manual, a repair manual, and a 12 month limited warranty on parts. NOTE; We recommend purchasing 1 case of No. 3112 filters and 1 case of No. 5000 SurgiSoak® Enzyme cleaner with the machine. Machine can easily be repaired at the hospital.
Code Number / Product Description
CS/QTY
Hospital Price
No. R15025 / SurgiSonic® One Machine Two Sink Table
Sink Combo Table
9 ft Wide X 28 in Deep X 34 in Tall (adjustable)
1
Call for Price
No. R15037 / SurgiSonic® Two Machine Table
Clean and Rinse Table
7 ft Wide X 28 in Deep X 34 in Tall (adjustable)
1
Call for Price
No. R15038 / SurgiSonic® One Machine Table
Stand Alone Table
4 ft Wide X 28 in Deep X 34 in Tall (adjustable)
1
Call for Price
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price

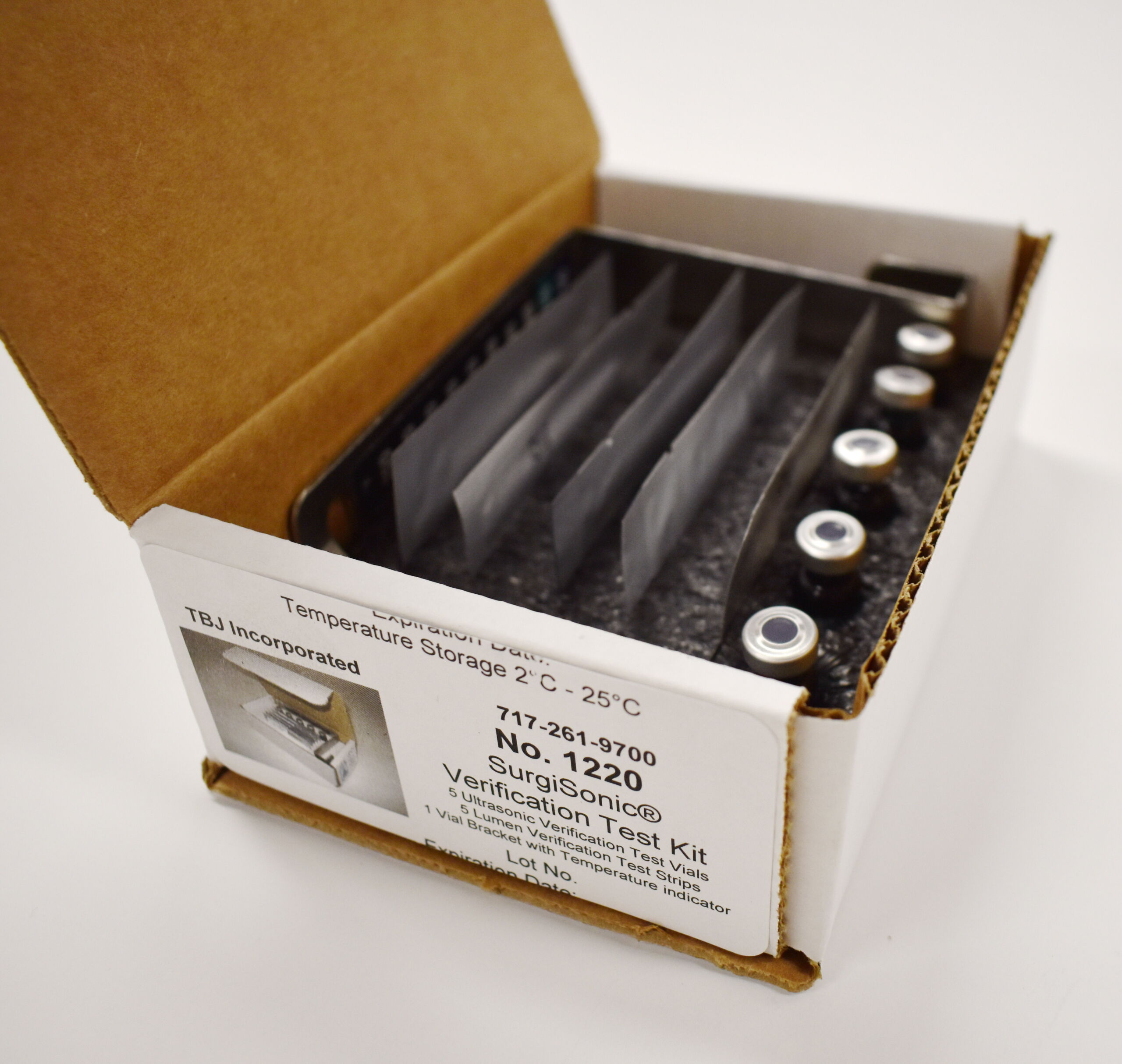

No. 1220 / SurgiSonic® Verification Test Kit
5-Ultrasonic Test Vials, 5-Lumen Test Strips
1-Temperature strip Bracket to hold test vial over transducer
for accurate testing.
1-Tracking Chart for five tests
2-Lbs
12X9X3
1

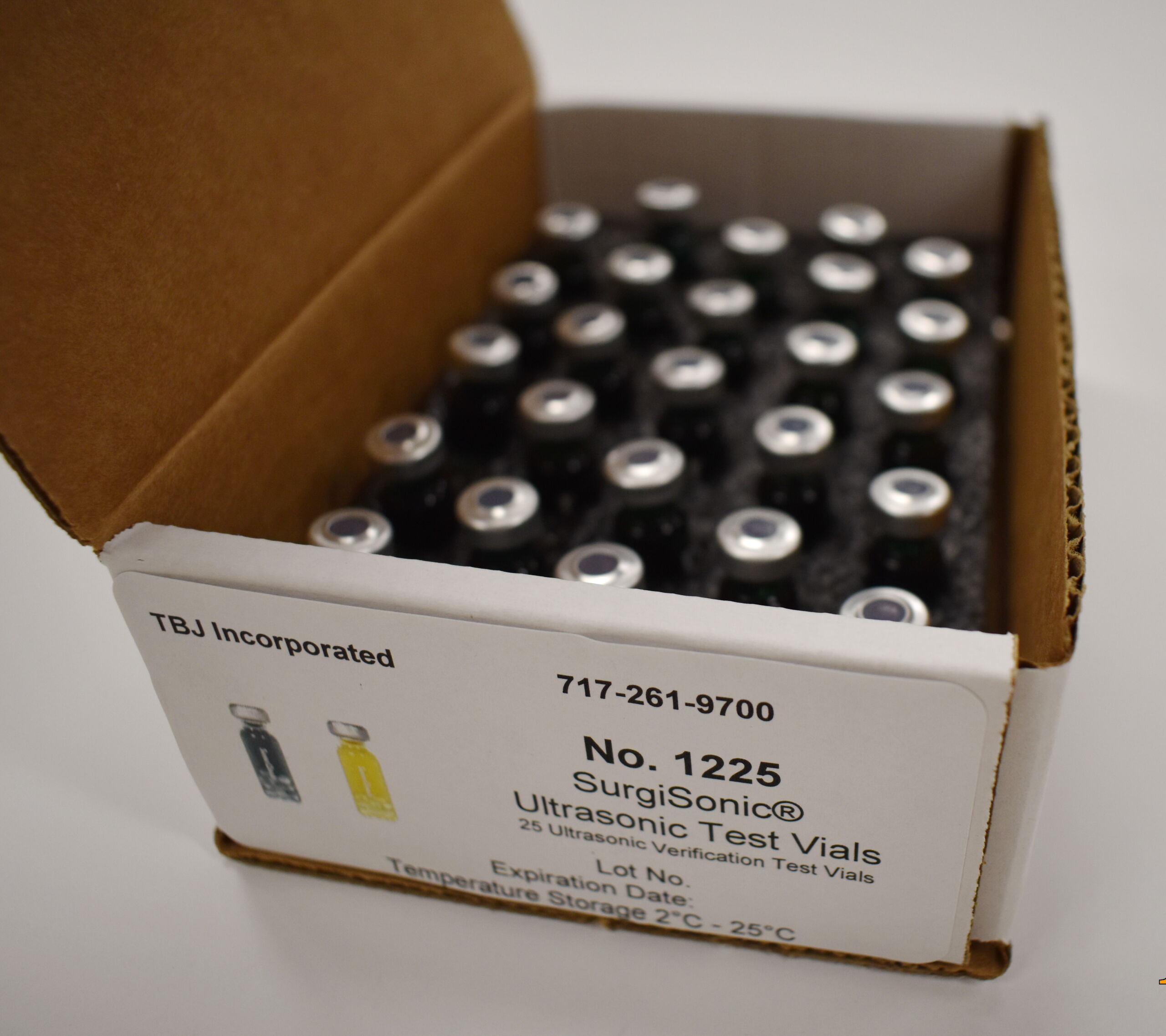

No. 1225 / SurgiSonic® Ultrasonic Test Vials
Case of 25 Vials
2-Lbs
12X9X3
25

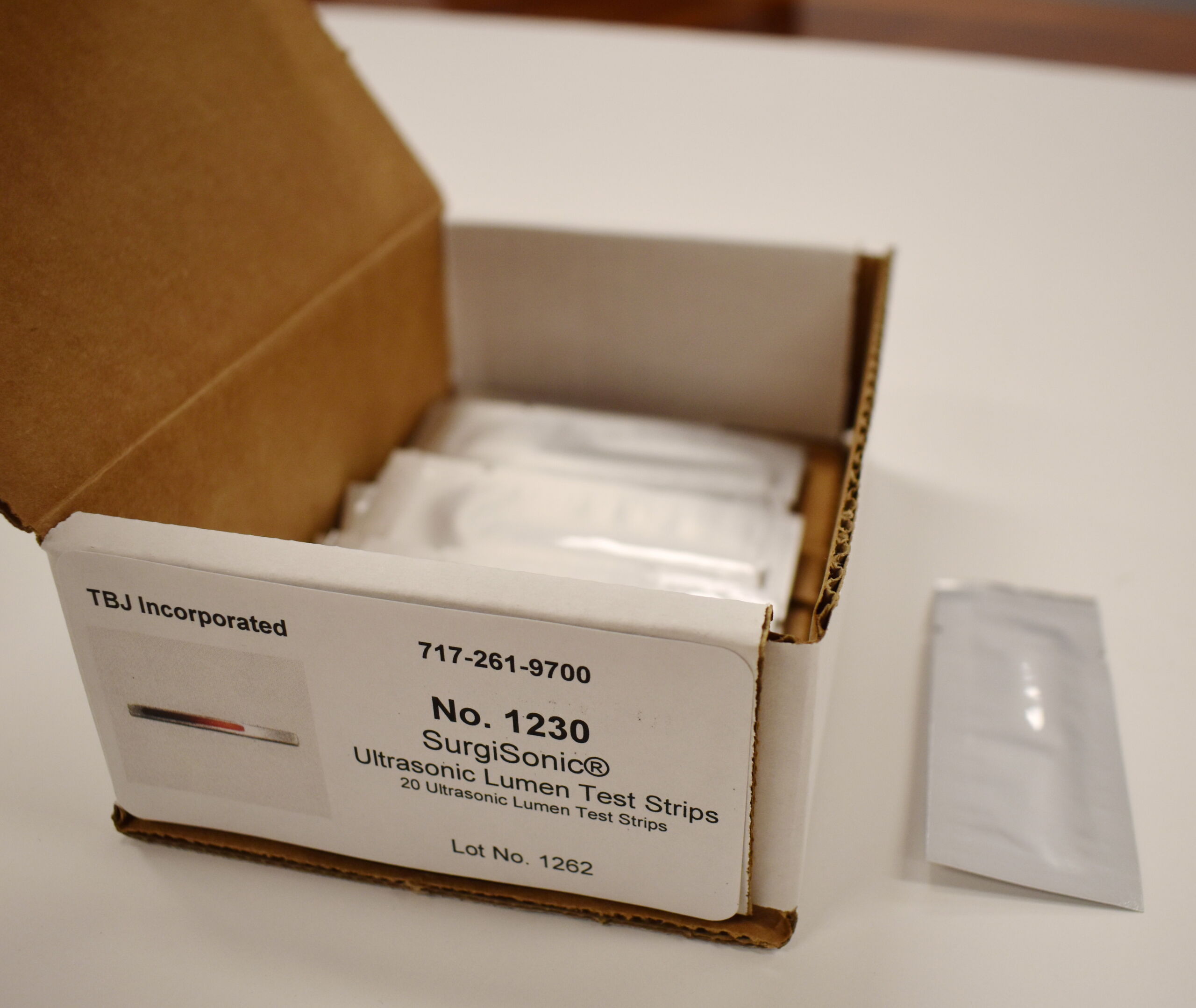

No. 1230 / SurgiSonic® Ultrasonic Lumen Test Strips
Case of 20 Strips
2-Lbs
12X9X3
20
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price
No. 1312 / Small Instrument Ultrasonic Cleaner 1-1/3 Gallon
Counter Top Size: 12.5” wide X 7” deep X 11” high
Internal Tank Size: 11.5” wide X 5.5” deep X 6.0” high
Includes: 30 minute timer switch, heater, lid, basket, 10’ drain tube
Transducer frequency 62 kHz / Cycle 60 Hz / 150 watts / 1-1/3 gallon
15-Lbs
12X12X12
1
Call for Price
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price
No. 1320 / Instrument Basket Ultrasonic Cleaner 8 Gallon (600 watts)
Counter Top Size: 27.5” wide X 16.5” deep X 11” High
Internal Tank Size: 26” wide X 14” deep X 6” high
Includes: 30 minute timer switch, heater, lid, and 10’ drain tubing
Transducer frequency 62 kHz / Cycle 60 Hz / 600 watts / 8 gallon
75-Lbs
36X20X19
1
Call for Price
SurgiSonic® Cleaning Machine Disposables
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price

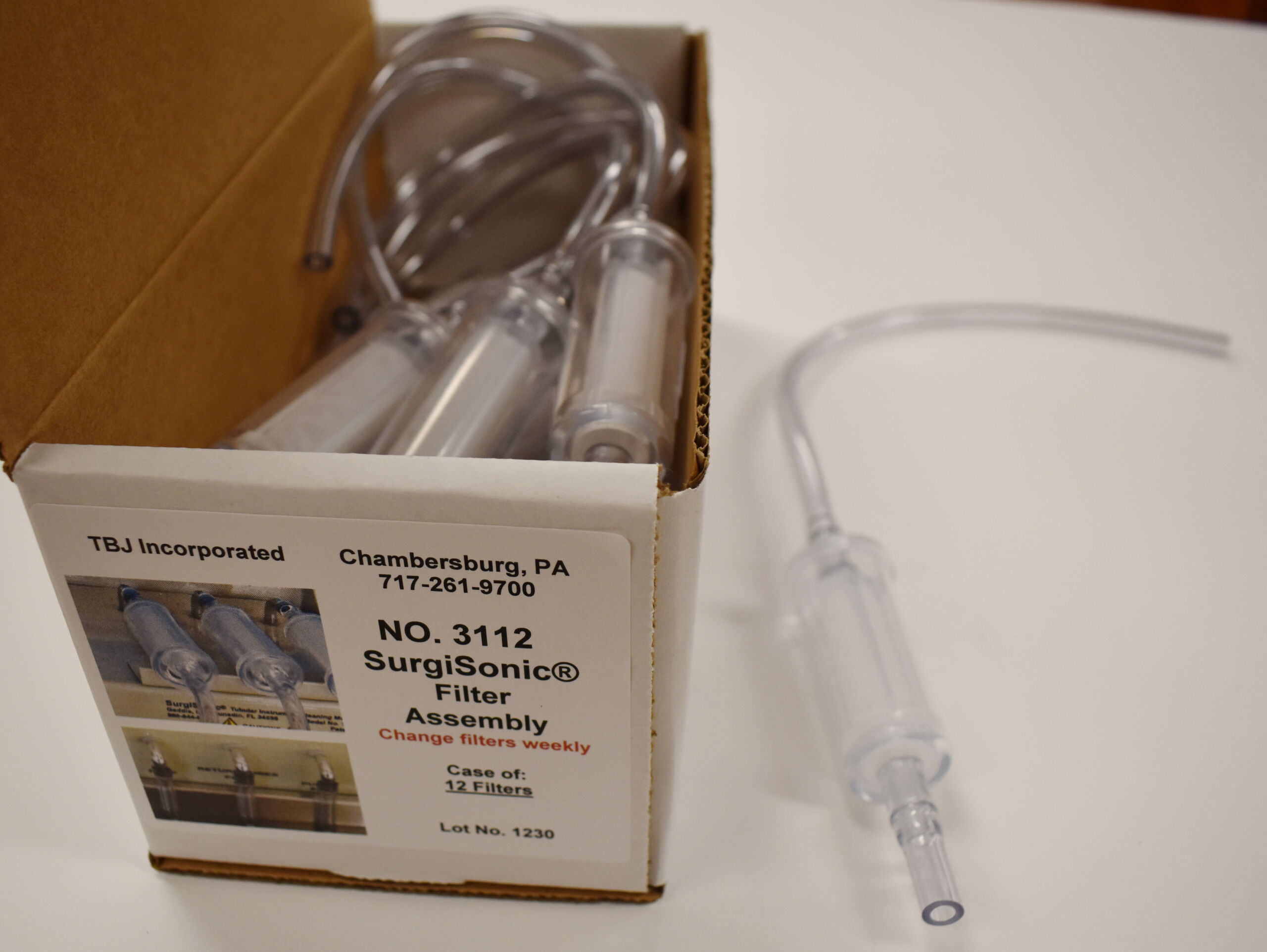

No. 3112 / SurgiSonic® Filter Kit
(filter and tubing assembly) for Model No. 1211X
2-Lbs
10X5X5
12

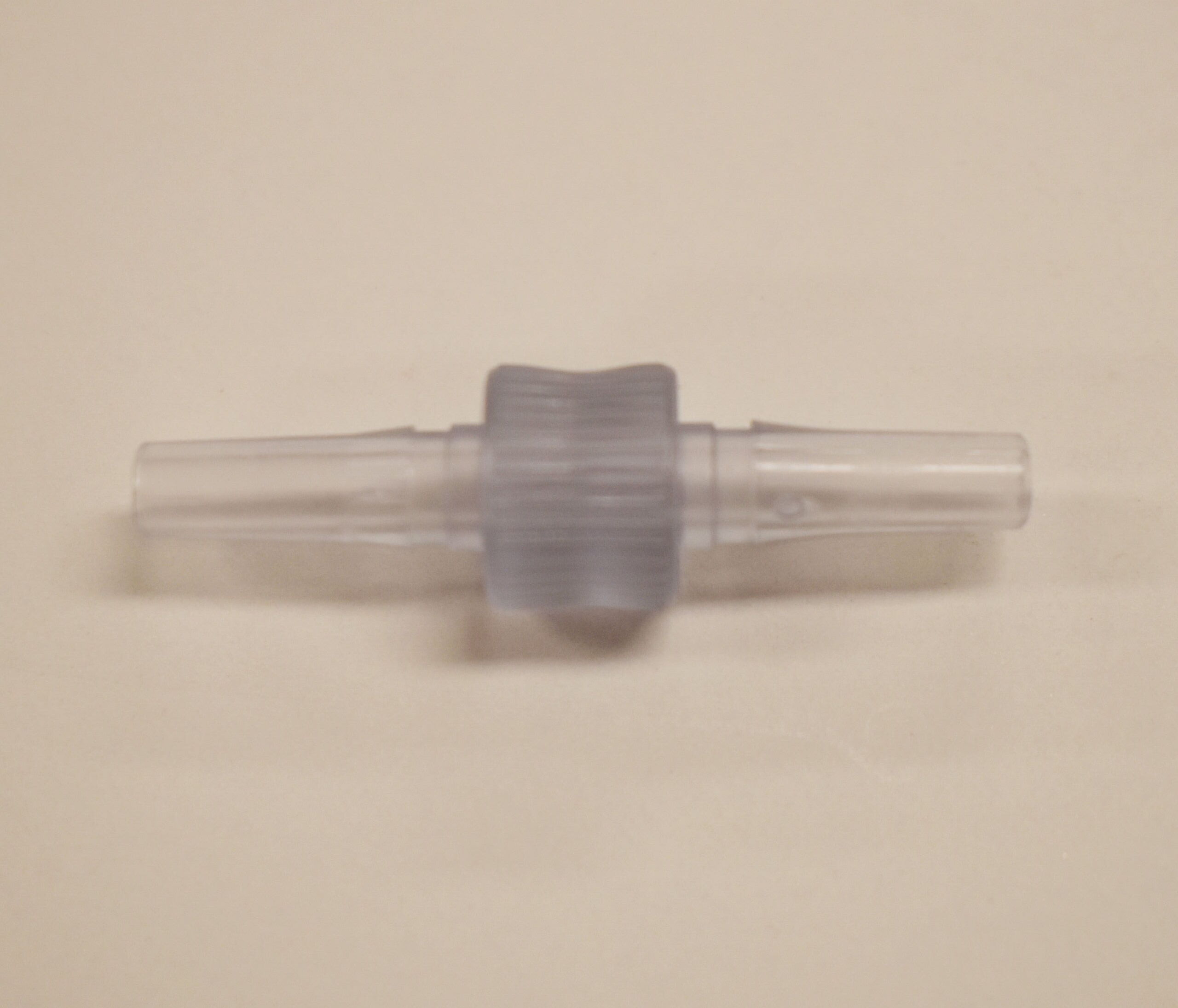

No. 3200 / Male to Male Luer Slip Connector
Used to connect daVinci ® instrument control box to a suction chamber to suction shaft of instrument clean.
1-Lbs
10X5X5
24

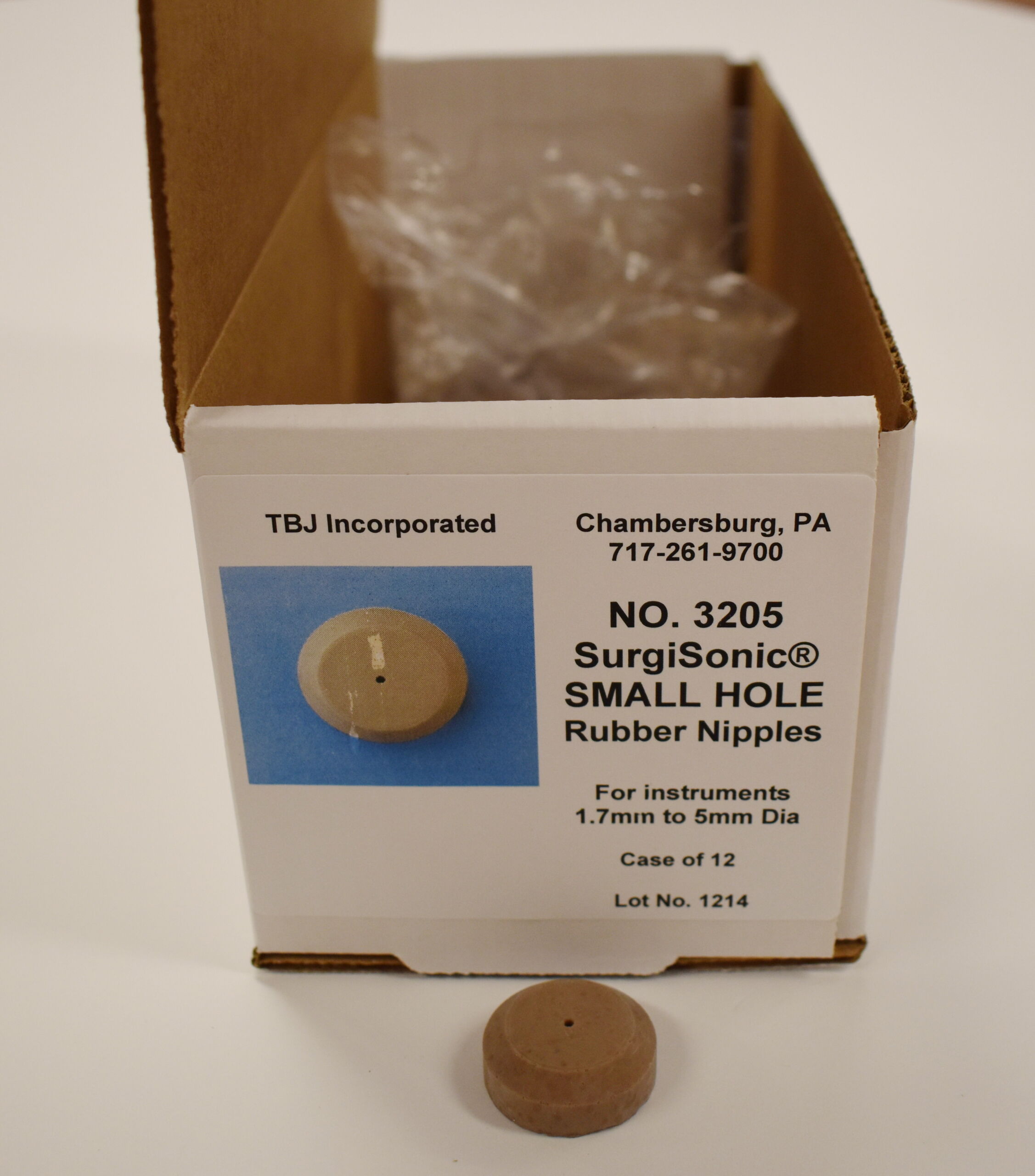

No. 3205 / Rubber Nipple-Small Hole / Latex Free
Used with 1.7mm to 5mm diameter instruments
For Model No. 1211X
1-Lbs
10X5X5
12

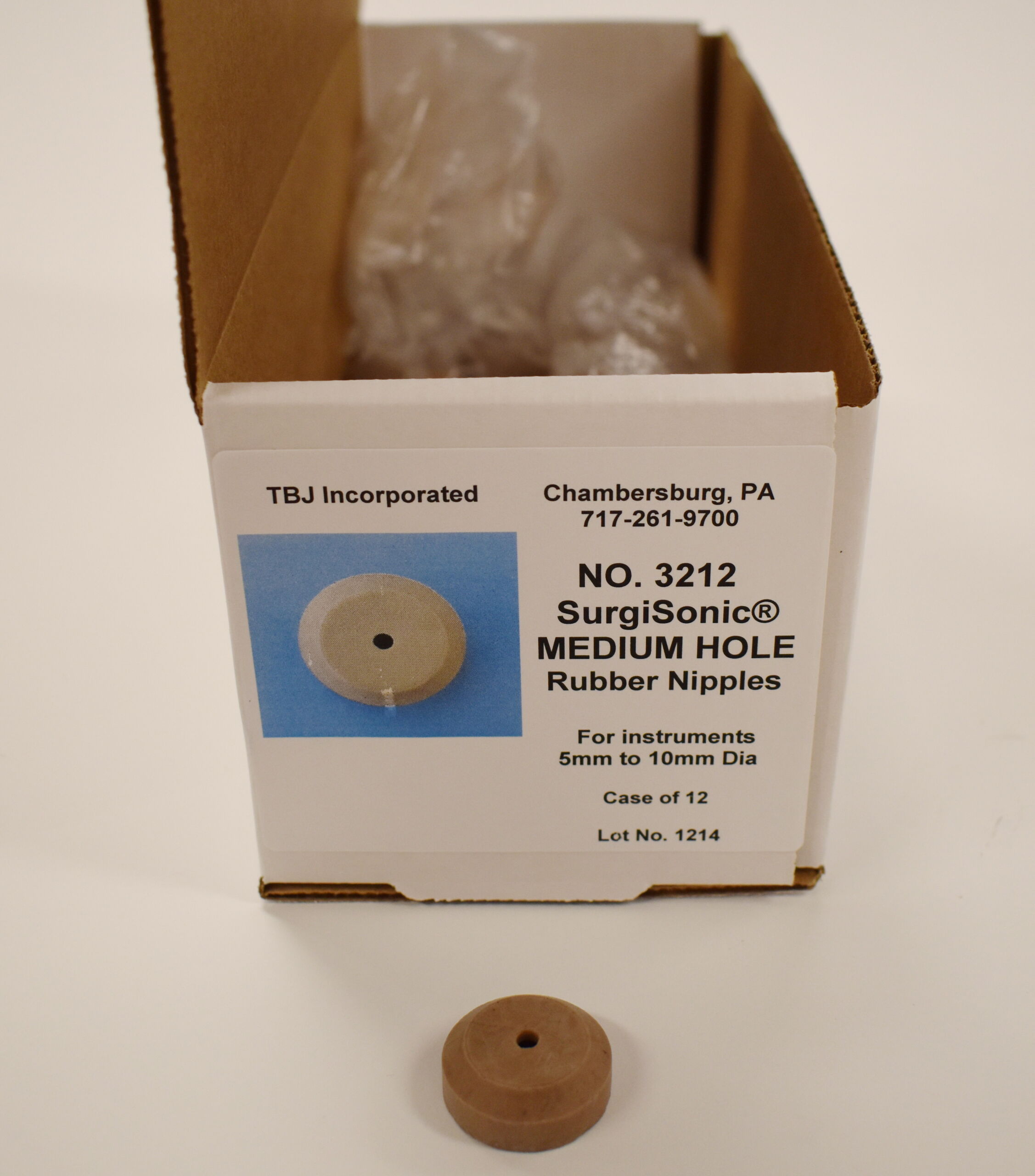

No. 3212 / Rubber Nipple-Medium Hole / Latex Free
Used with 5mm to 10mm diameter instruments
For Model No. 1211X
1-Lbs
10X5X5
12

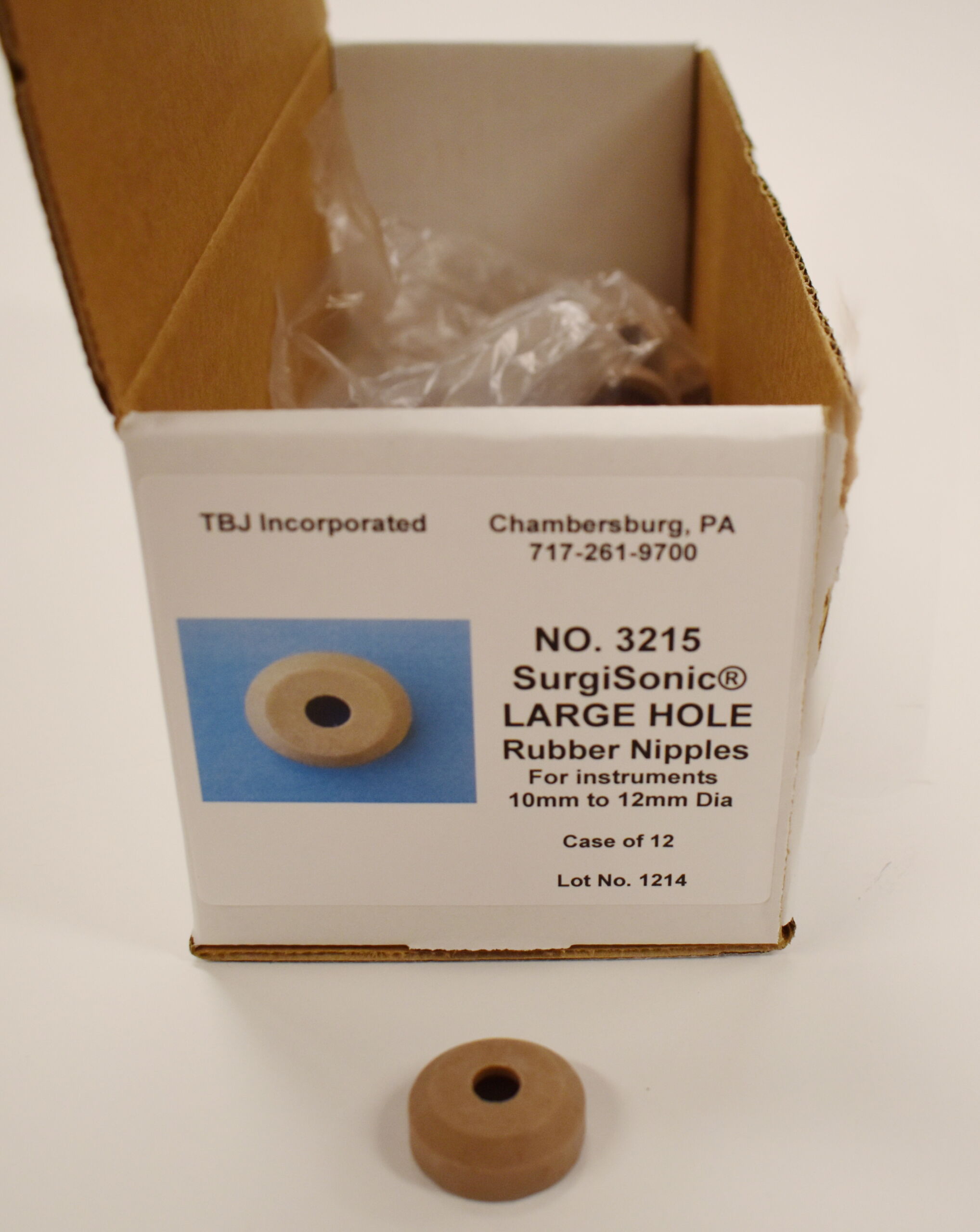

No. 3215 / Rubber Nipple-Large Hole / Latex Free
Used with 10mm to 12mm diameter instruments
For Model No. 1211X
1-Lbs
10X5X5
12

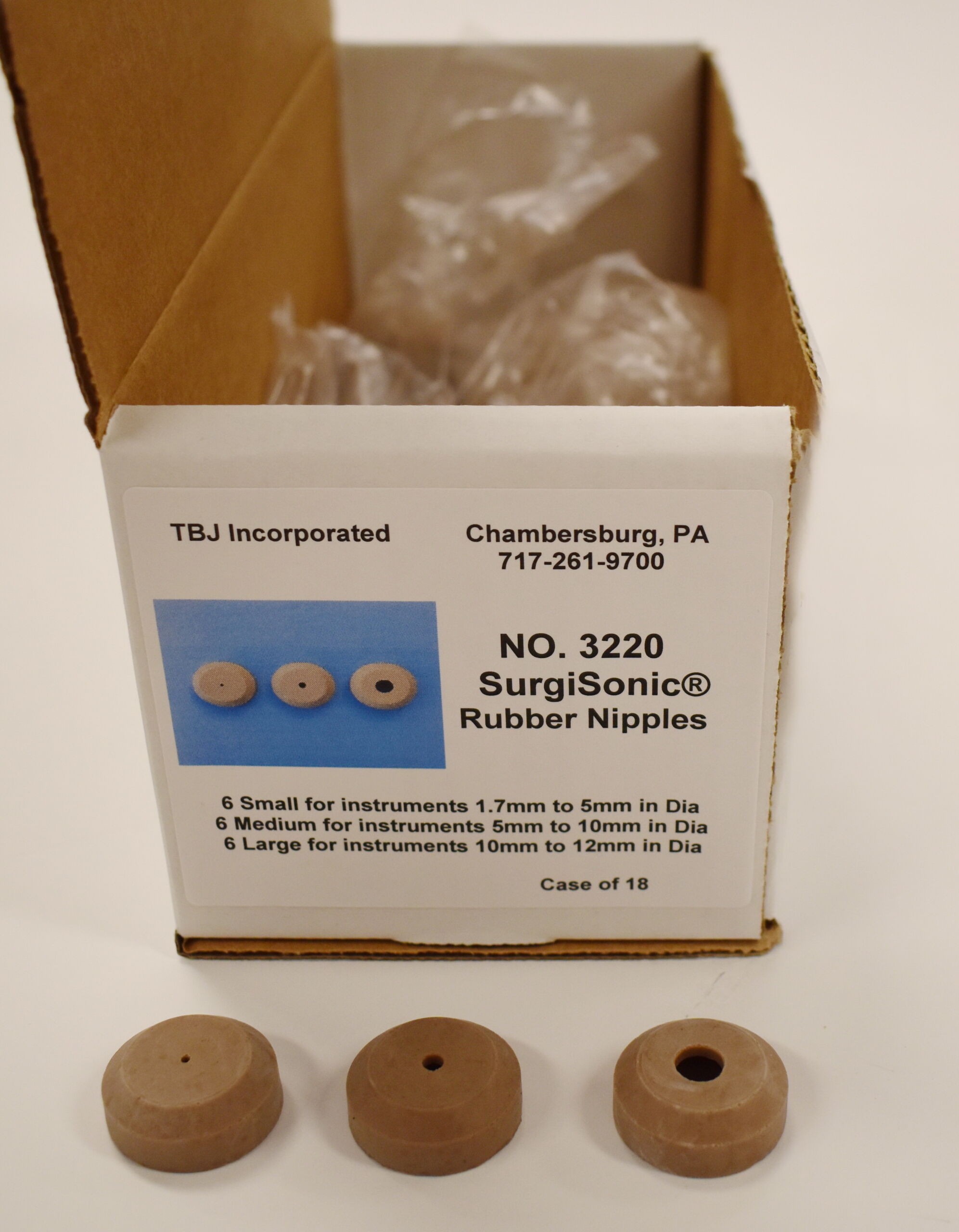

No. 3220 / Rubber Nipple Assortment / Latex Free
6-Small hole, 6-Medium hole, 6-Large hole
For Model No. 1211X
1-Lbs
10X5X5
18
SurgiSonic® Cleaning Machine Replacement Parts
for #1211X, #1312, and #1320 Cleaning Machines
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price
No. 3312 / SurgiSonic® 1211x SurgiSuction™
Scrubbing Chamber
Stainless steel suction chamber MAXIMIZES suction
for cleaning all types of non-robotic tubular
instruments such as, laparoscopic, GI forceps, bone
reamers, etc. and the shaft/control box areas of
robot instruments.
1-Lbs
10X4X4
1
No. 3315 / SurgiSonic® 1211x SurgiSuction™
Scrubbing Chamber
Stainless steel suction chamber MAXIMIZES
turbulence within the narrow interior of the suction
chamber that has four small holes drilled into it for
cleaning the jaw/pulley end of a robotic da Vinci®
instrument up to 8mm in diameter.
1-Lbs
10X4X4
1

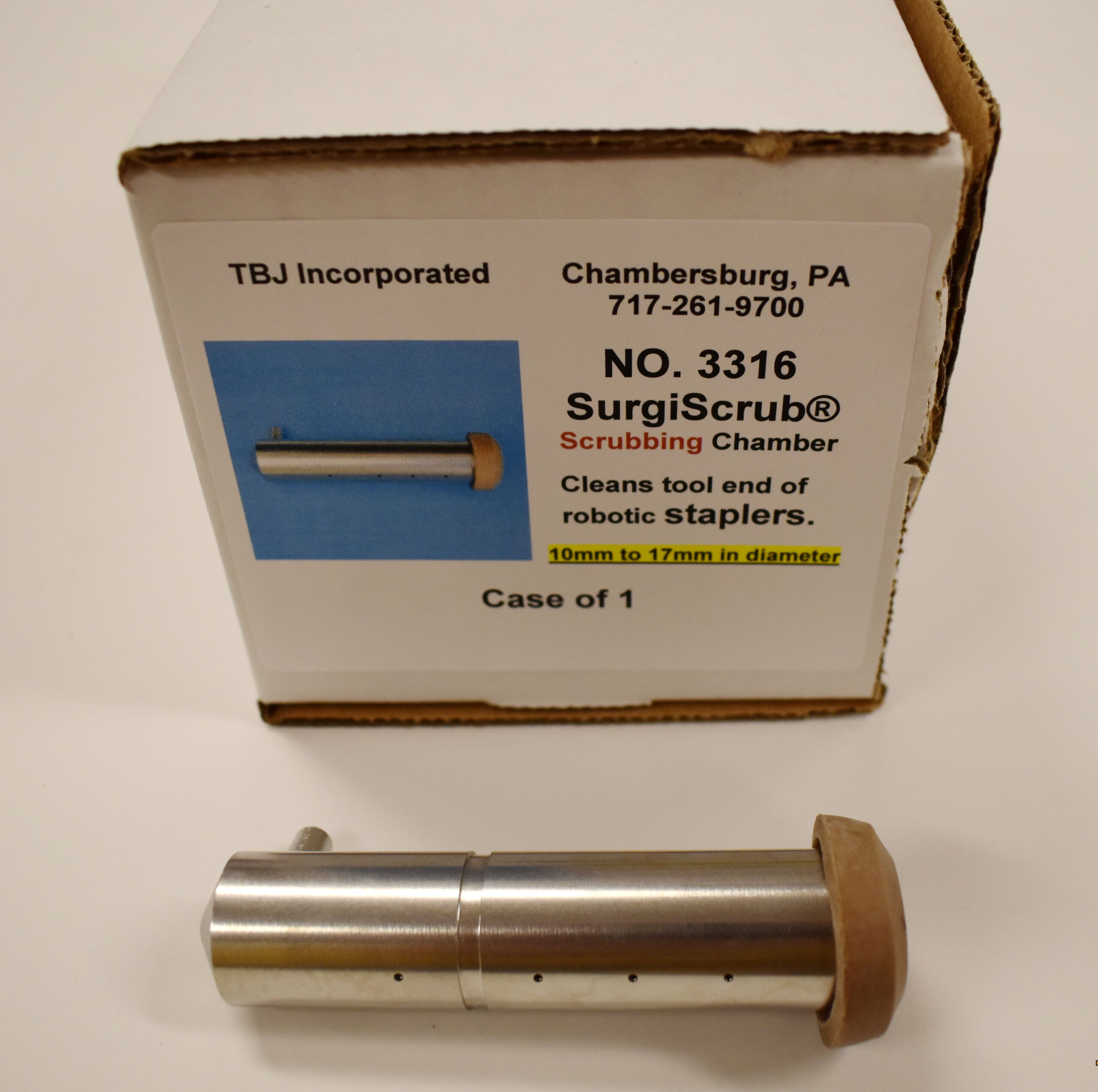

No. 3316 / SurgiSonic® 1211x SurgiSuction™
Scrubbing Chamber
Stainless steel suction chamber MAXIMIZES
turbulence within the larger suction chamber via four
small holes drilled into it for cleaning the tool end of
a robotic da Vinci® stapler up to 17mm in diameter.
1-Lbs
10X4X4
1

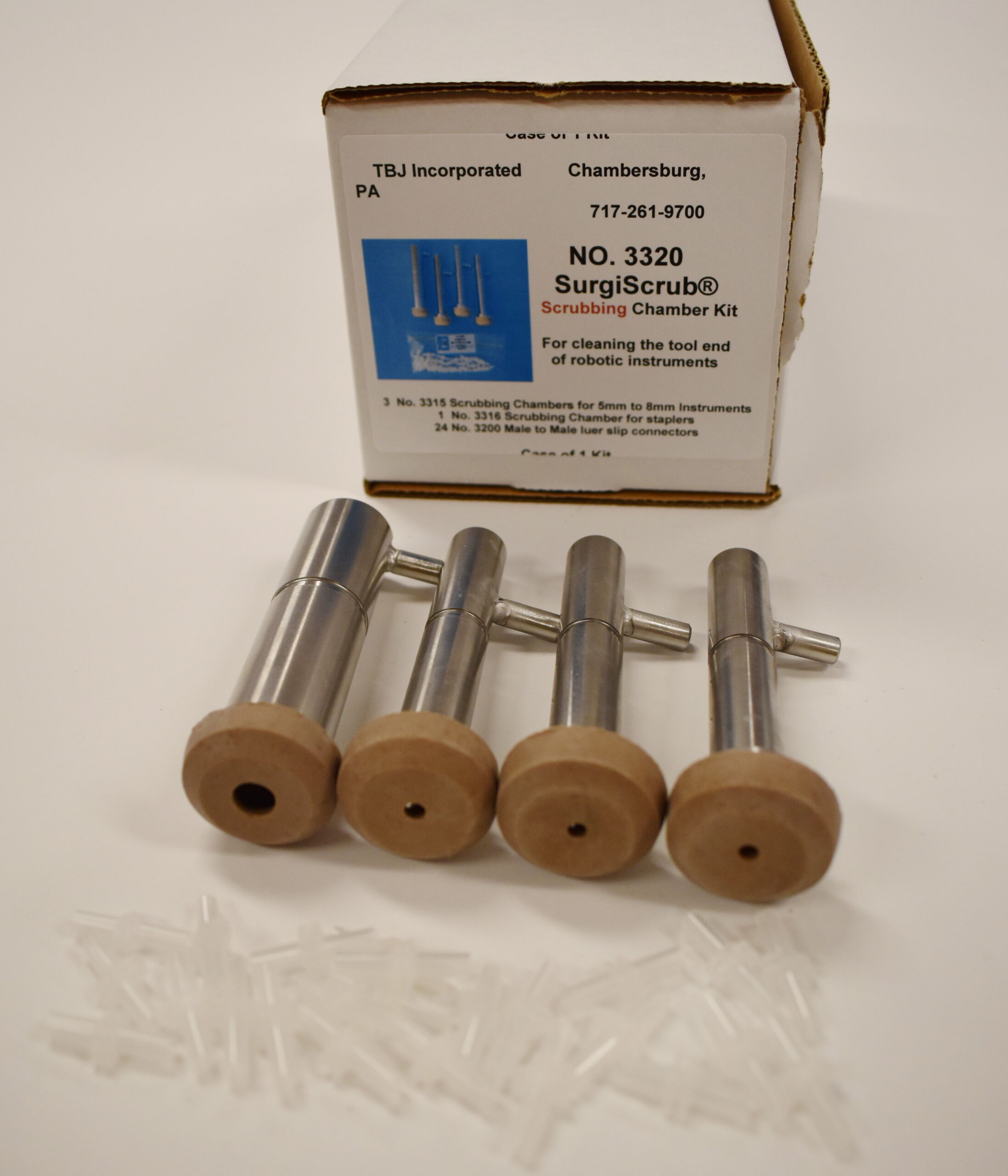

No. 3320 / SurgiSonic® SurgiScrub®
Scrubbing Chamber Kit
Used for cleaning both ends of da Vinci®
instruments; 3 #3315 Chambers, 1 #3316
Chamber, 3 Med Nipples, 1 Large Nipple, and 24
Luer slips connectors are used to connect the
shaft/control box to the #3312 chamber.
1-Lbs
10X4X4
1

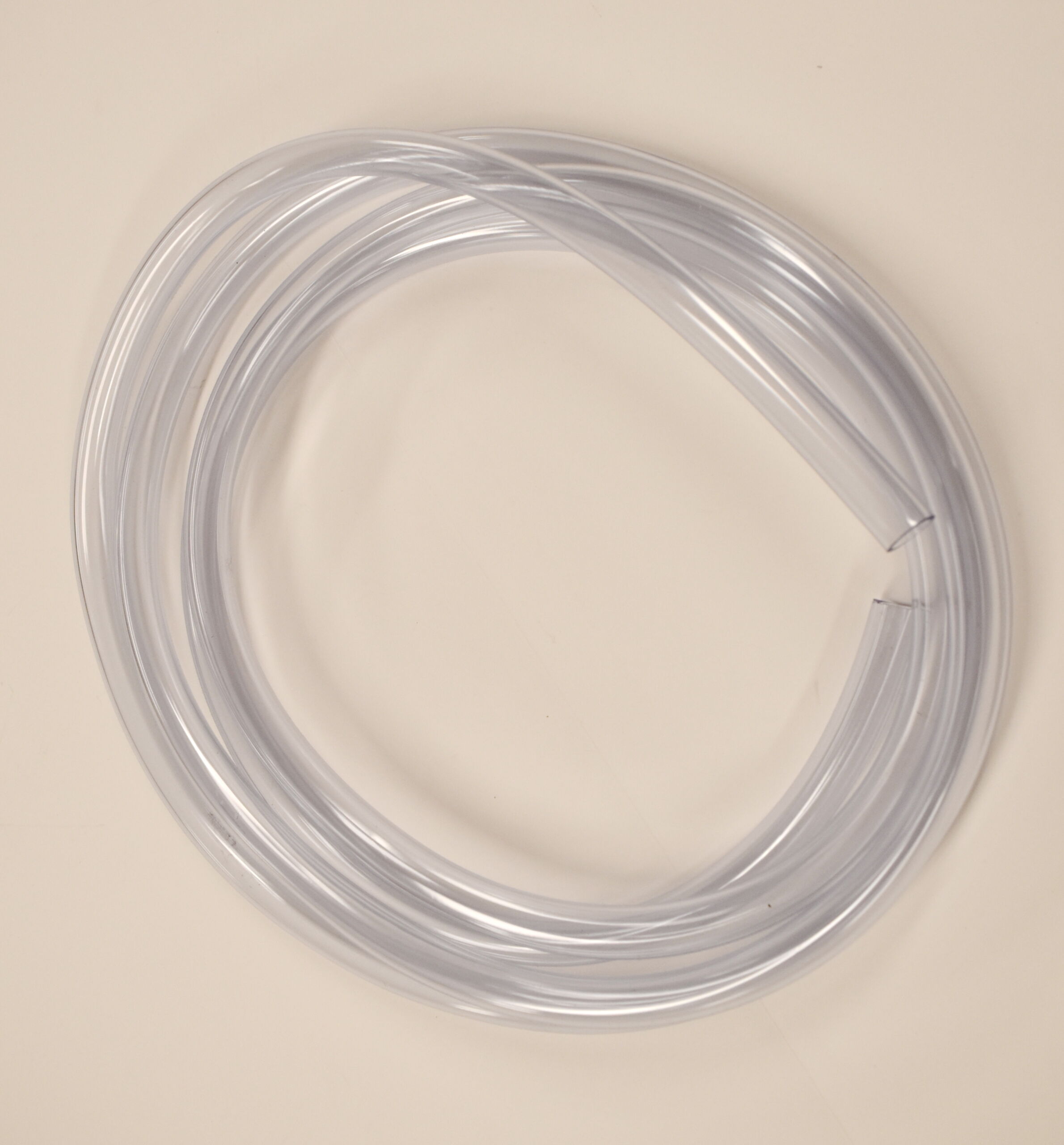

No. 3411 / Drain Tubing
Clear PVC (10ft long X 3/8 inch ID)
For Model No. 1312
1-Lbs
10X7X3
1

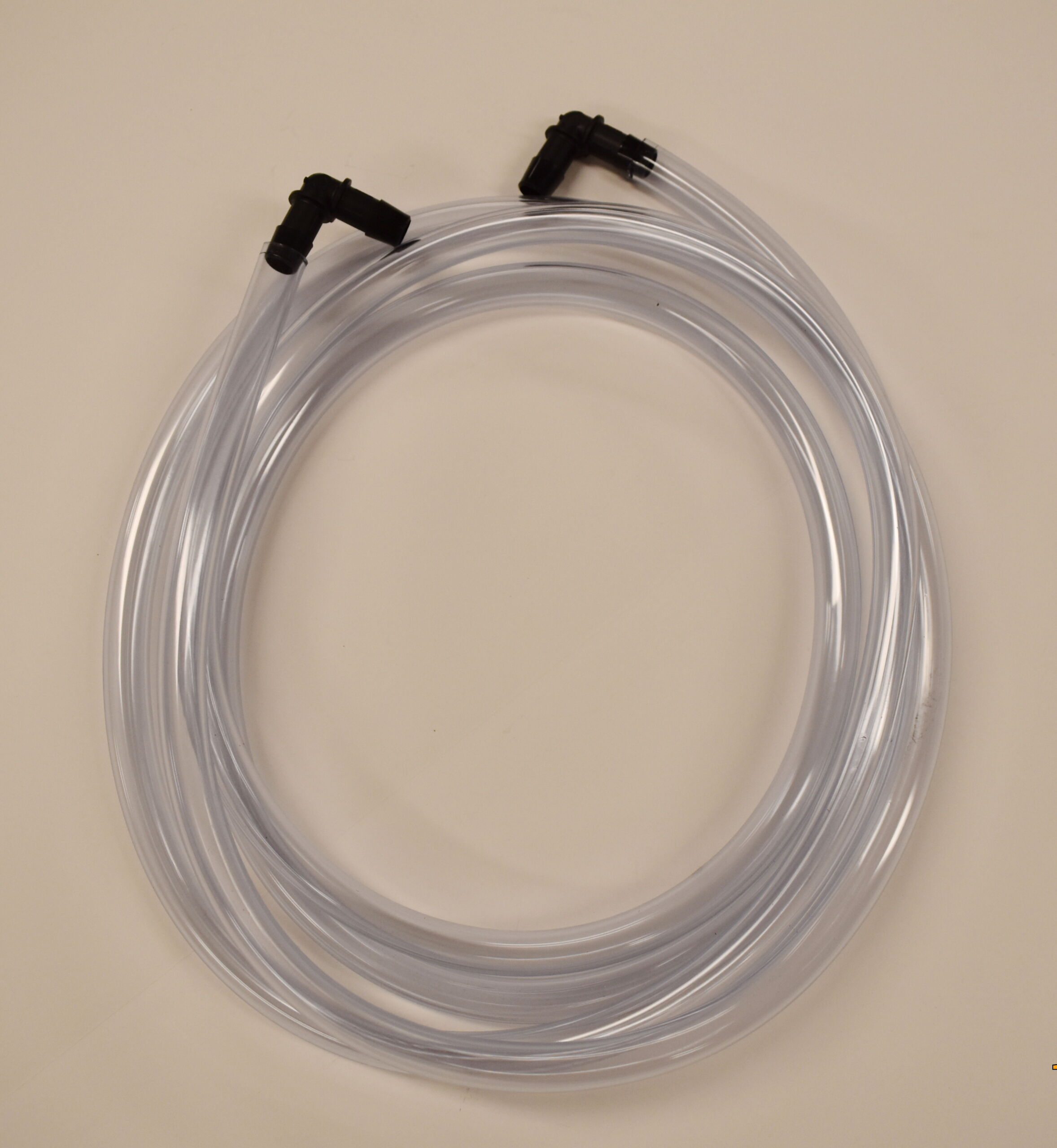

No. 3412 /
Drain Tubing
Clear PVC (10ft long X ½ inch ID)
For Model No. 1211X and 1320
1-Lbs
10X7X3
1

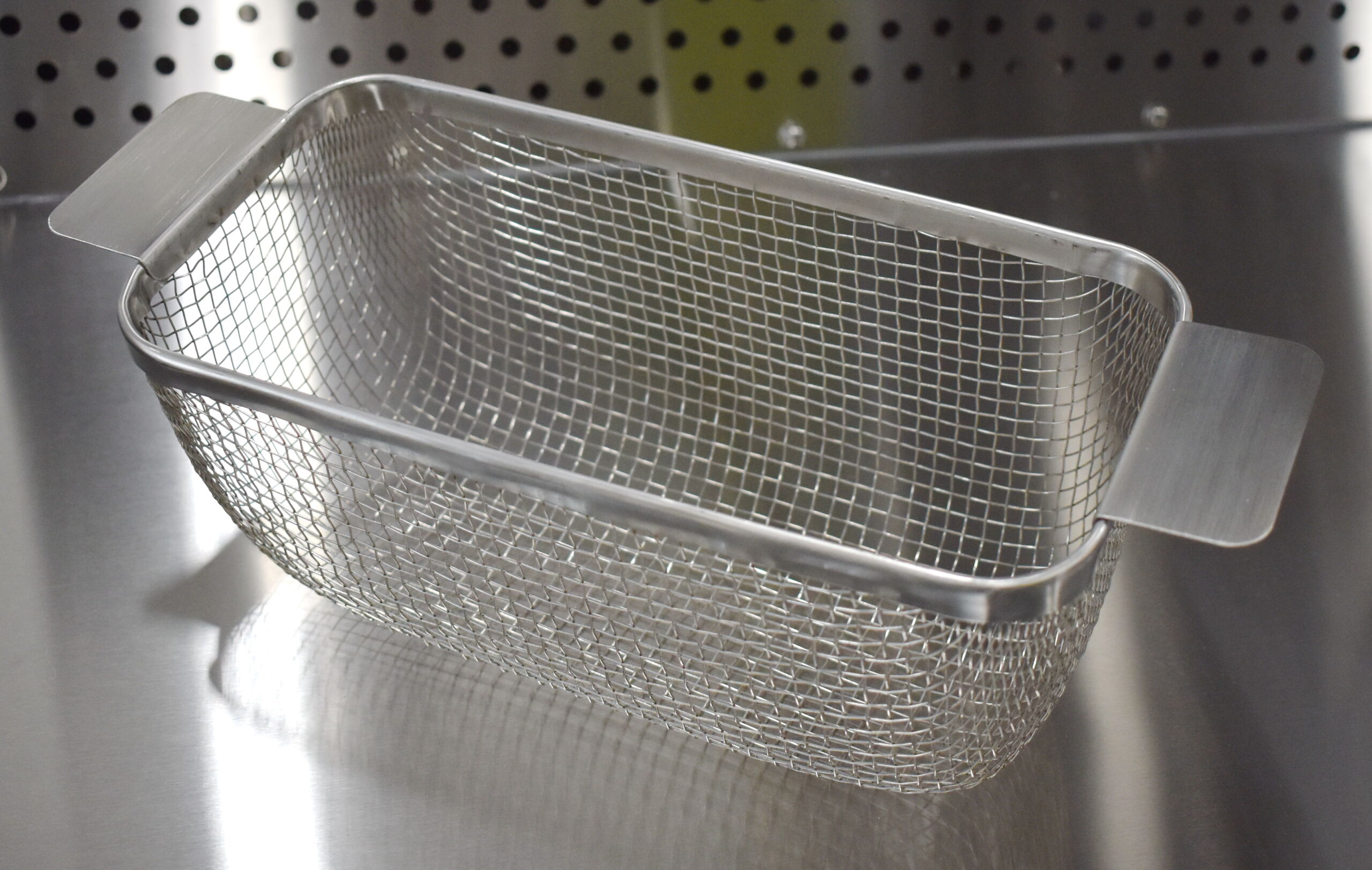

No. 3602 / Basket Stainless Steel
For Model No. 1312
2-Lbs
12X12X12
1

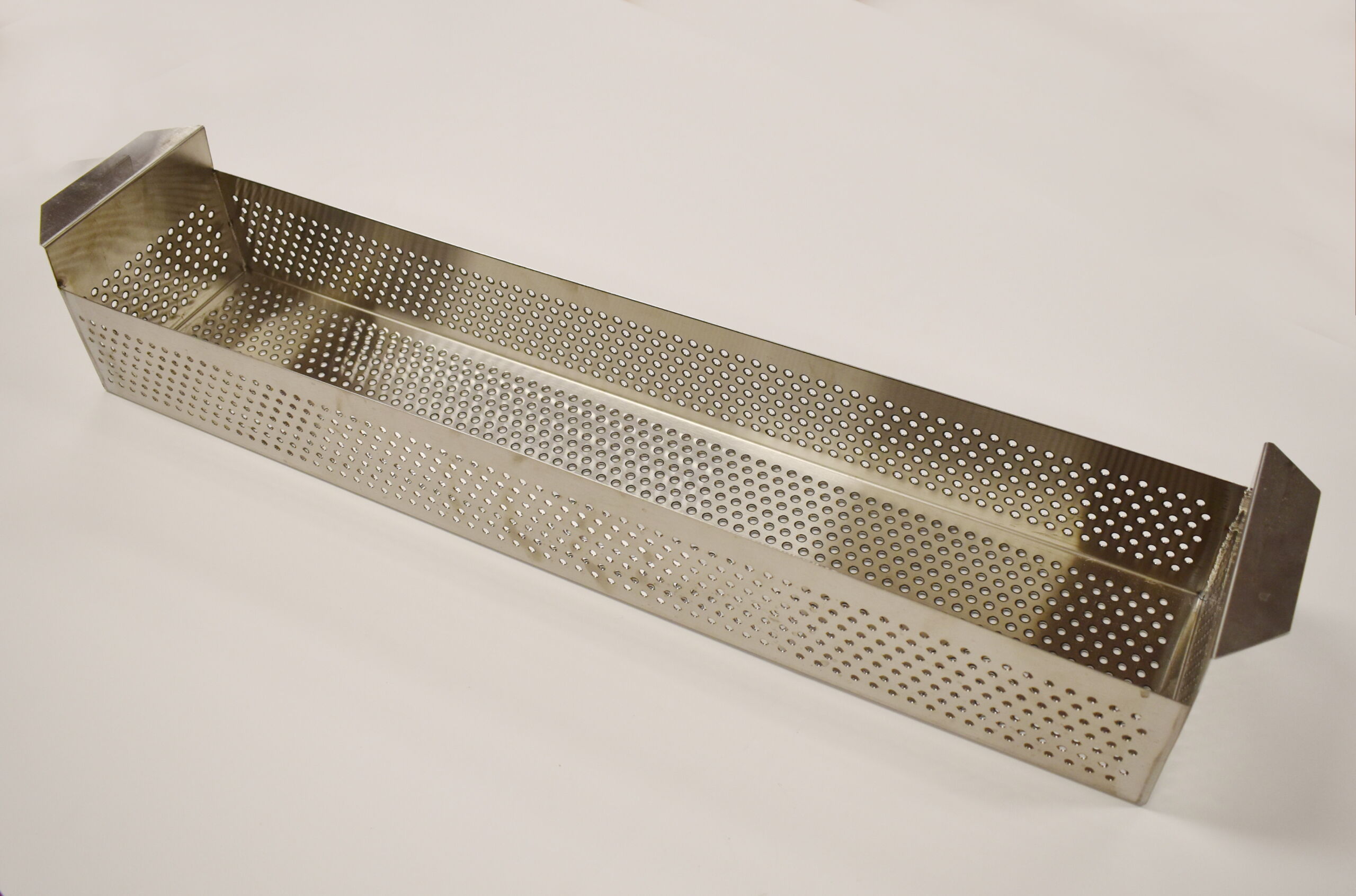

No. 3612X / Basket Stainless Steel
For Model No. 1211X
13-Lbs
36X8X8
1

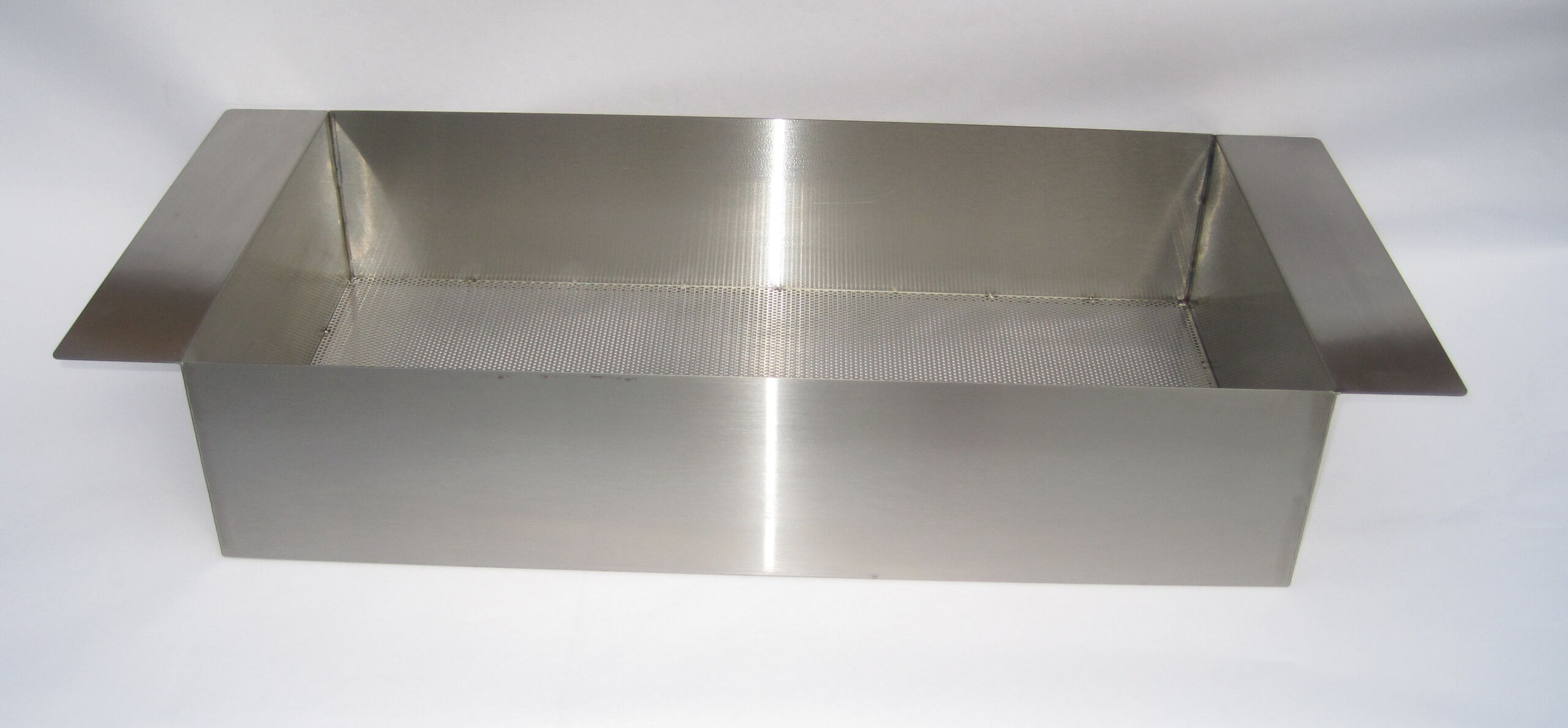

No. 3620 / Basket Stainless Steel
For Model No. 1320
18-Lbs
36X20X12
1

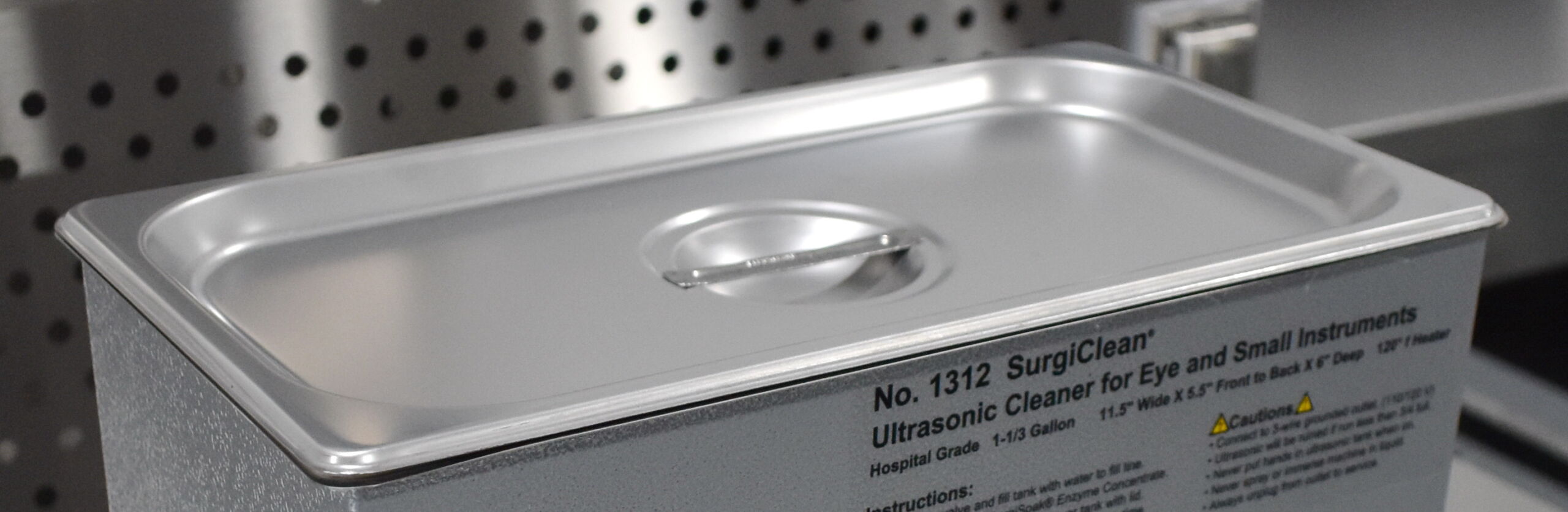

No. 3702 / Ultrasonic Lid Stainless Steel
For Model No. 1312
2-Lbs
12X12X12
1

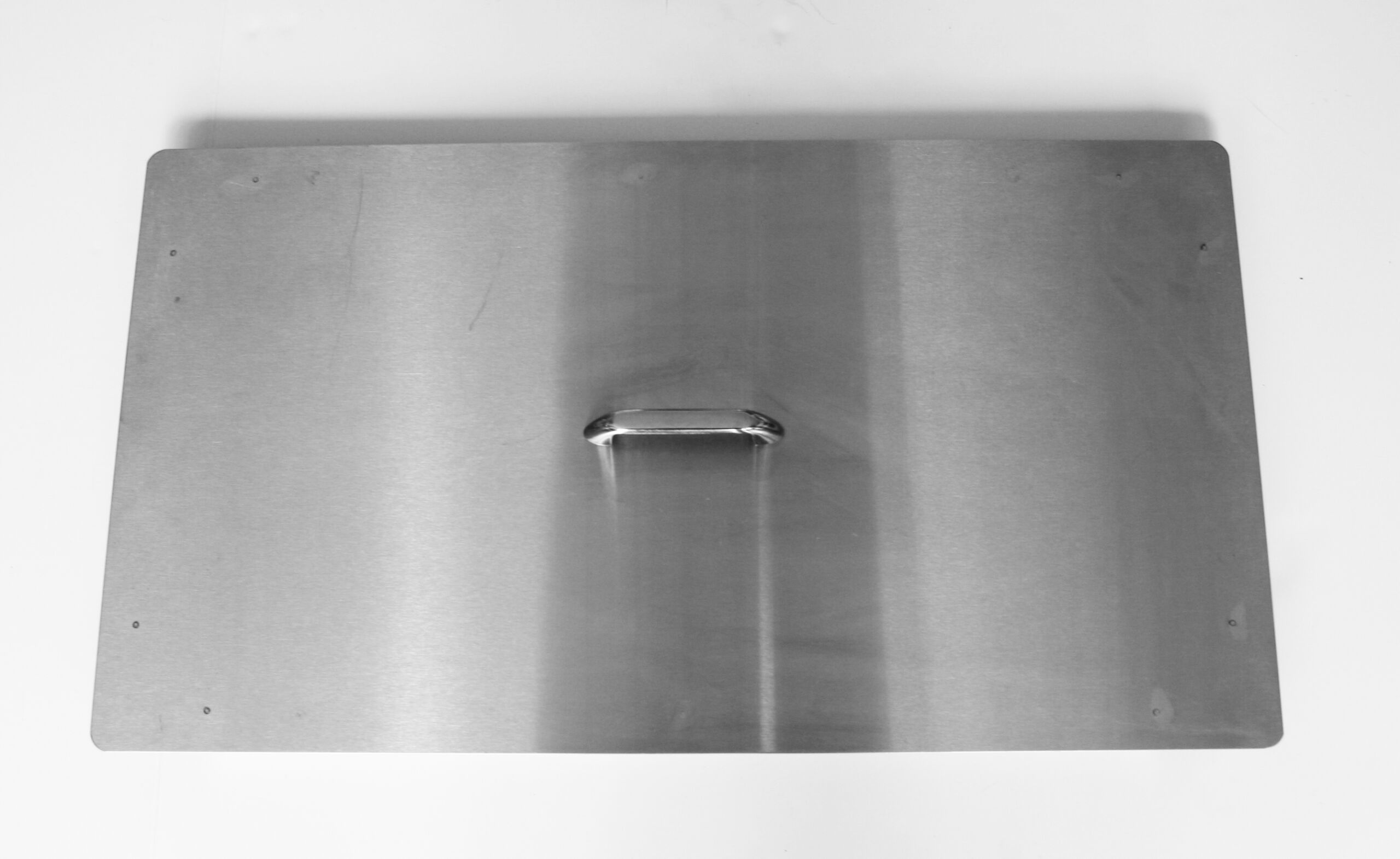

No. 3703 / Ultrasonic Lid Stainless Steel
For Model No. 1320
9-Lbs
30X20X6
1

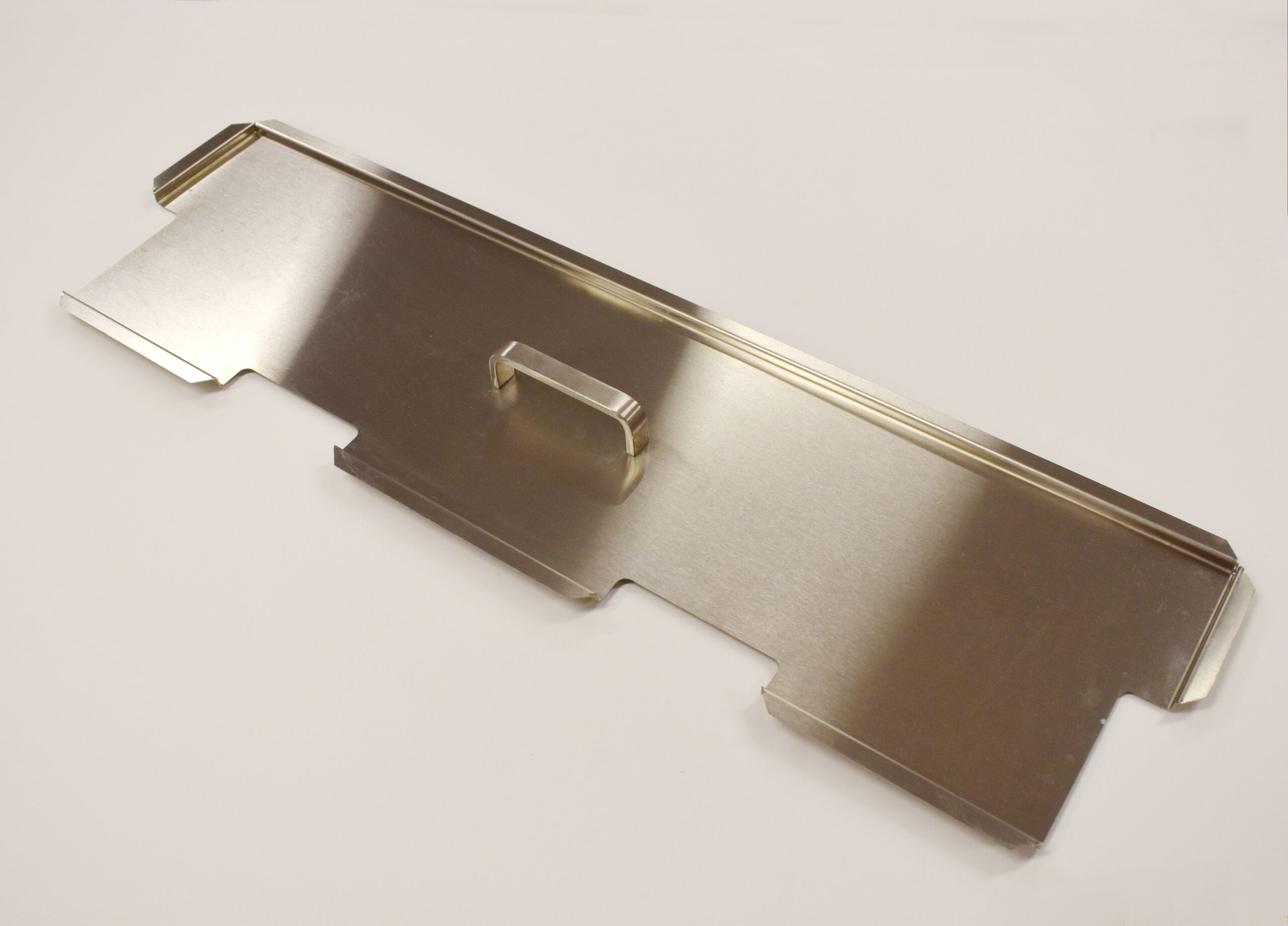

No. 3712X / Ultrasonic Lid Stainless Steel
For Model No. 1211X
7-Lbs
36X8X8
1

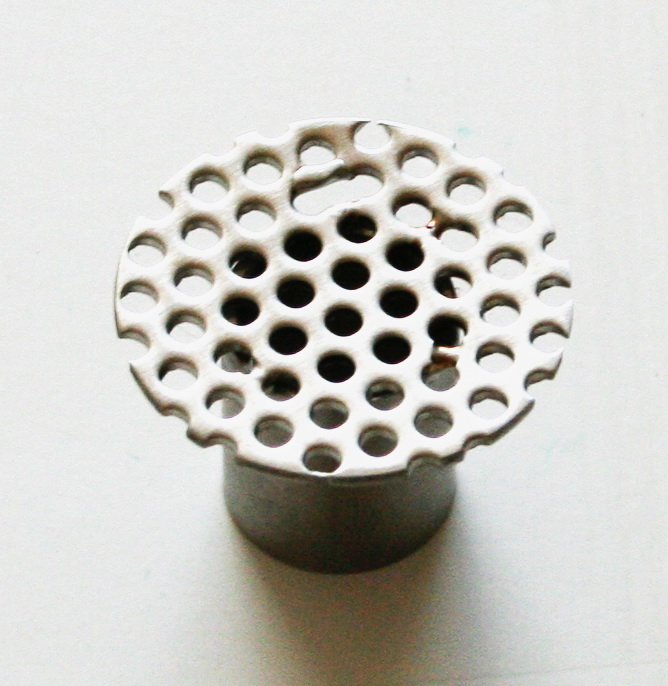

No. 3812 / Drain Hole Strainer
For Model No. 1211X and 1320
1-Lbs
10X5X5
1
SurgiSoak® Cleaning Surgical Instruments Presoak Detergent
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price

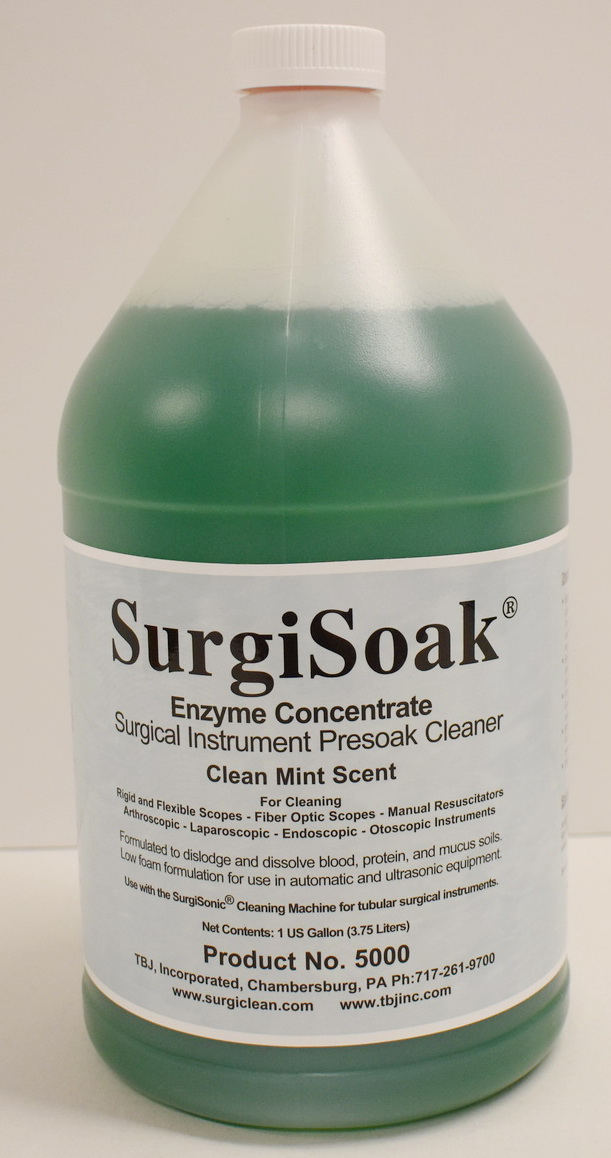

No. 5000 / SurgiSoak® Enzyme Concentrate Gallon Size
36-Lbs
12X12X12
4 gal
SurgiClean® Ultrasonic Cleaning Pouch
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price

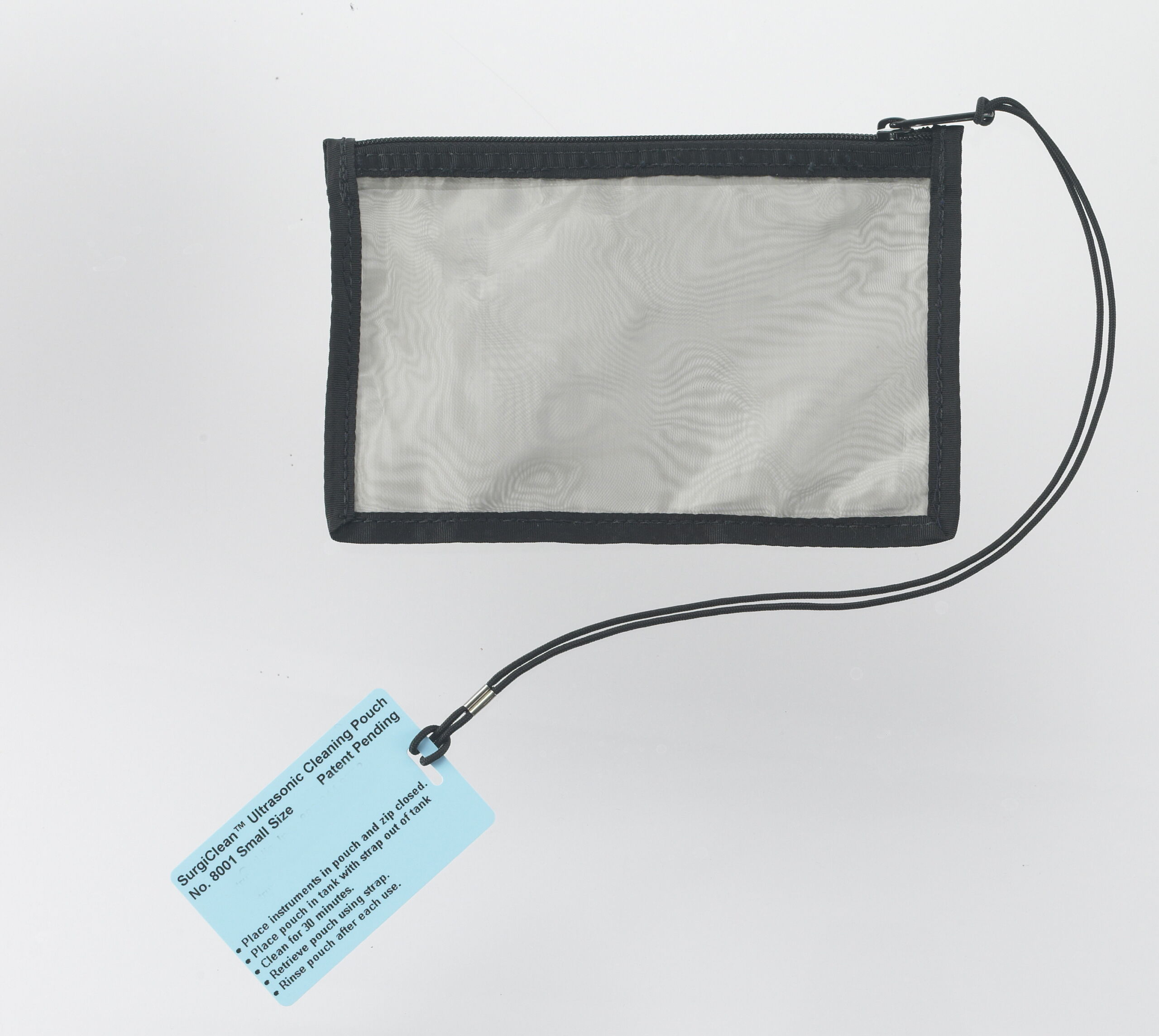

No. 8001 / SurgiClean® Ultrasonic Cleaning Pouch
Small Size
8 inches wide X 5 inches high
2-Lbs
9X7X3
5

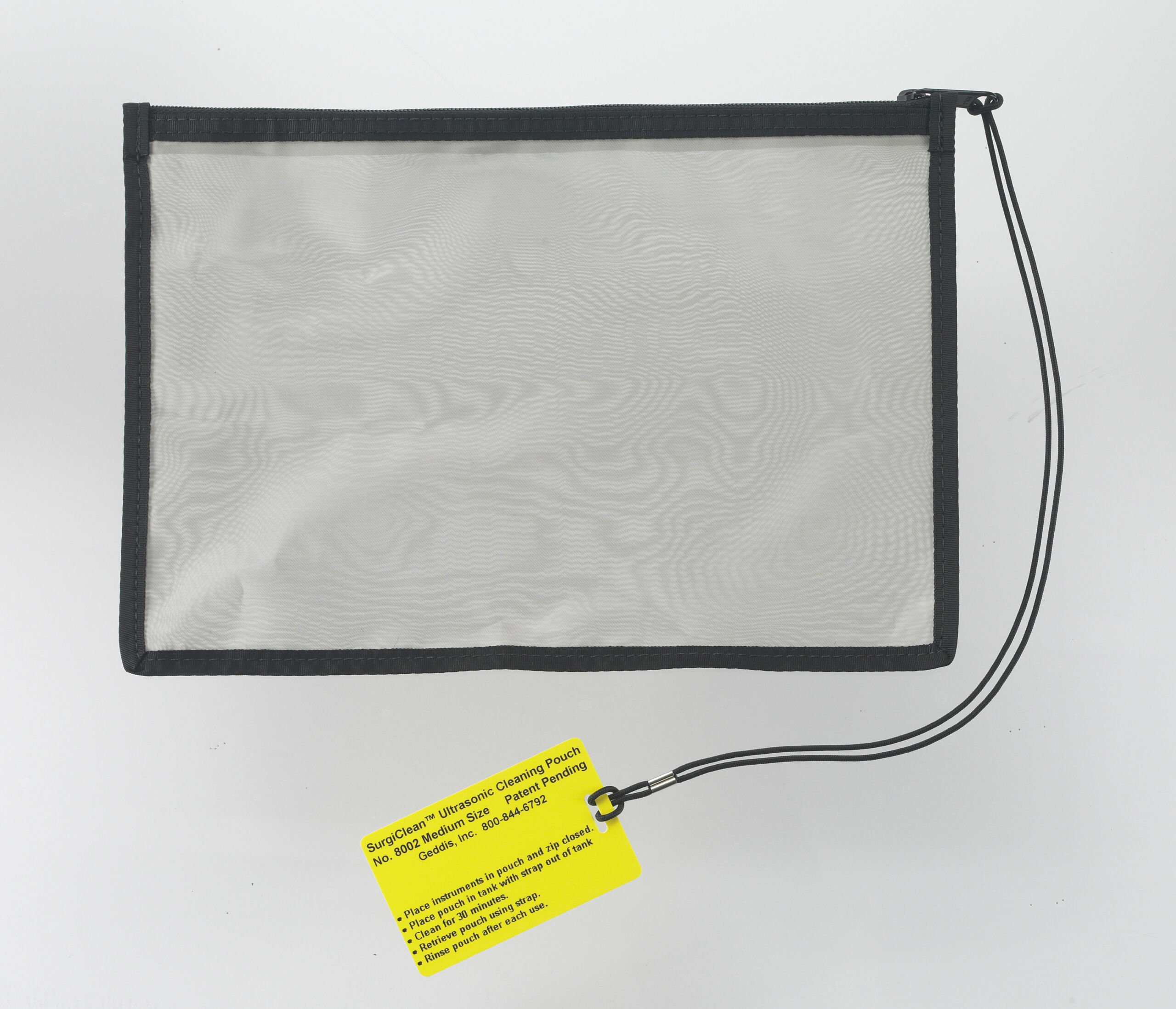

No. 8002 / SurgiClean® Ultrasonic Cleaning Pouch
Medium Size
8 inches wide X 12 inches high
2-Lbs
13X10X3
5

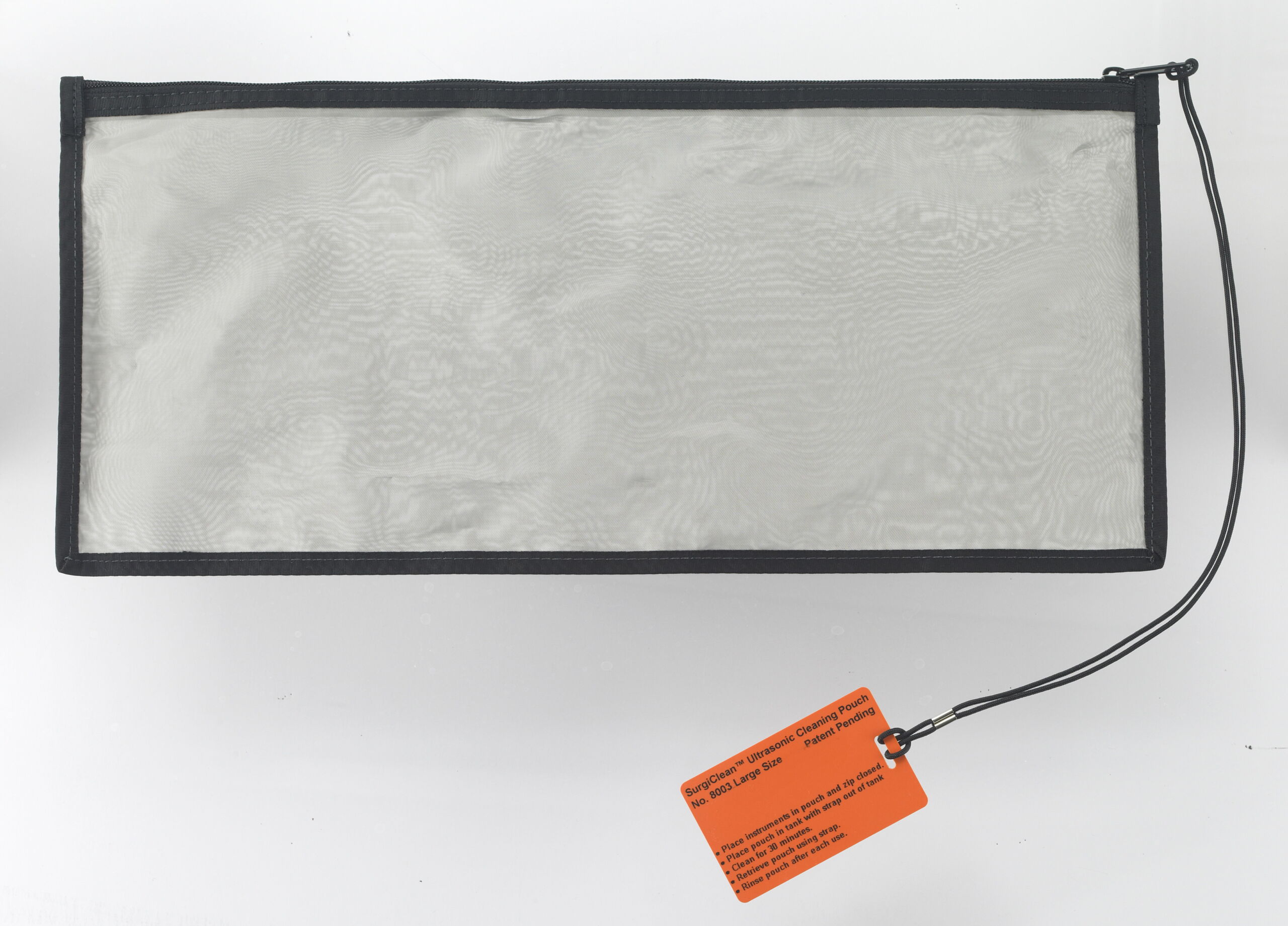

No. 8003 / SurgiClean® Ultrasonic Cleaning Pouch
Large Size
12 inches wide X 8 inches high
2-Lbs
13X10X3
5
No. 8012 / SurgiClean® Ultrasonic Cleaning Pouch
1-Small Pouch, 1-Medium Pouch
2-Lbs
13X10X3
2

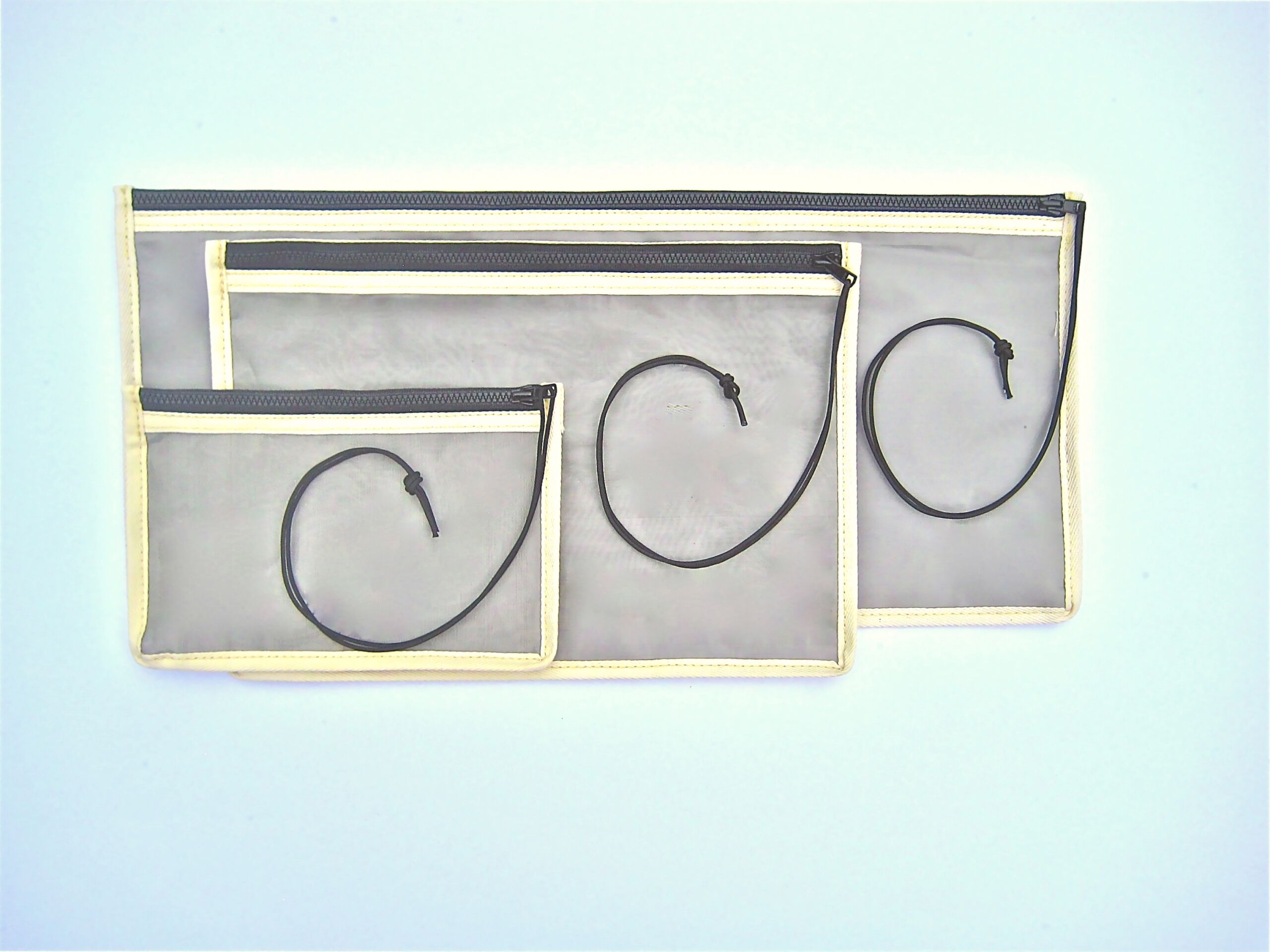

No. 8123 / SurgiClean® Ultrasonic Cleaning Pouch
1-Small, 1-Medium, and 1-Large Pouch
2-Lbs
13X10X3
3
SurgiSonic® Cleaning Machine Repair Parts
for #1211X, #1312, and #1320 Cleaning Machines
Code Number / Product Description
CS/LBS
CS Size
CS/QTY
Hospital Price

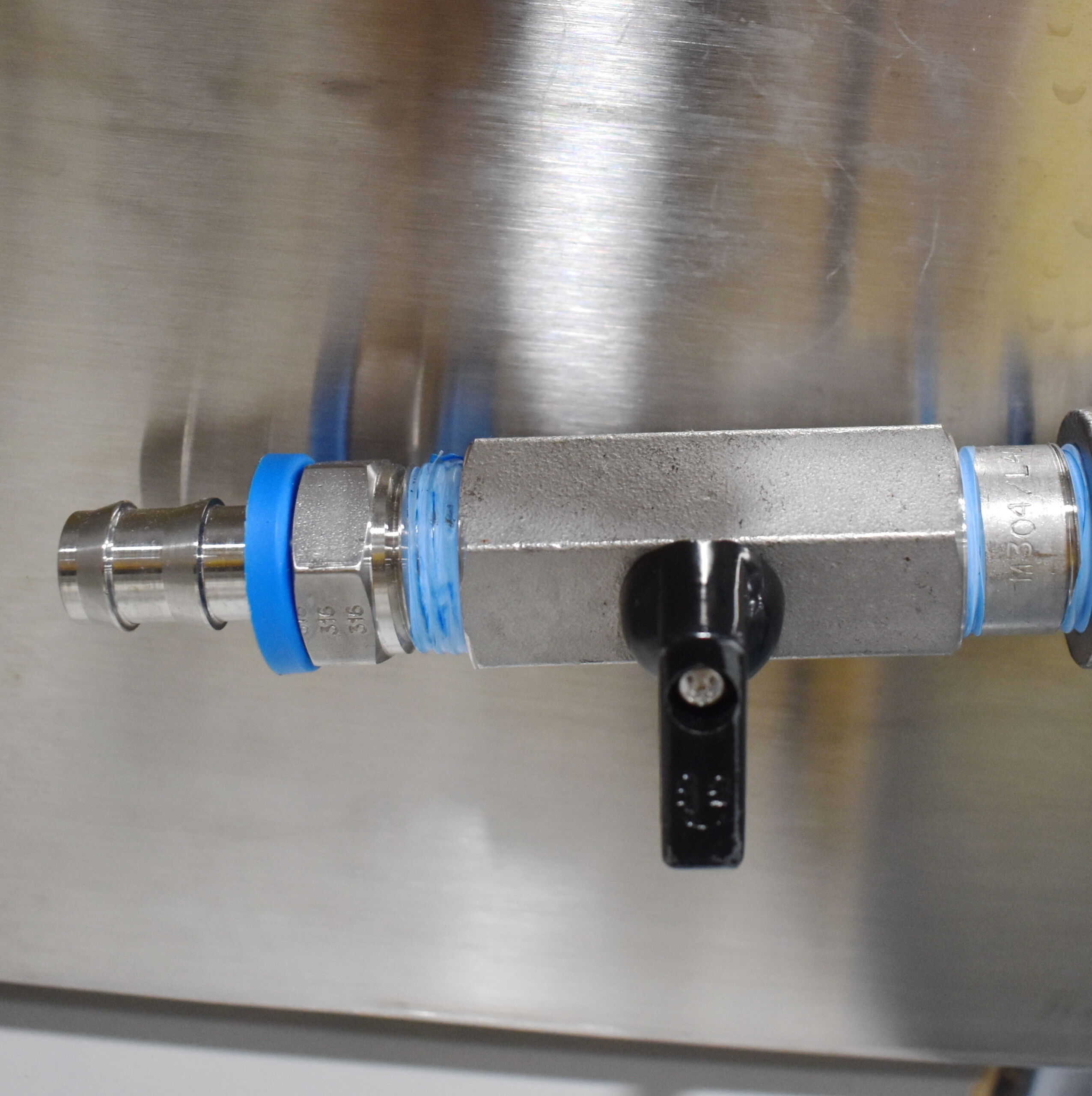

No. 3413 / Drain Valve – ½ inch Nipple, Right Angle Brass
For Model No. 1211X and No. 1320
2-Lbs
10X5X5
1
No. 3414 / Drain Valve – ¼ inch Plastic Stopcock Valve
For Model No. 1312
1-Lbs
10X5X5
1

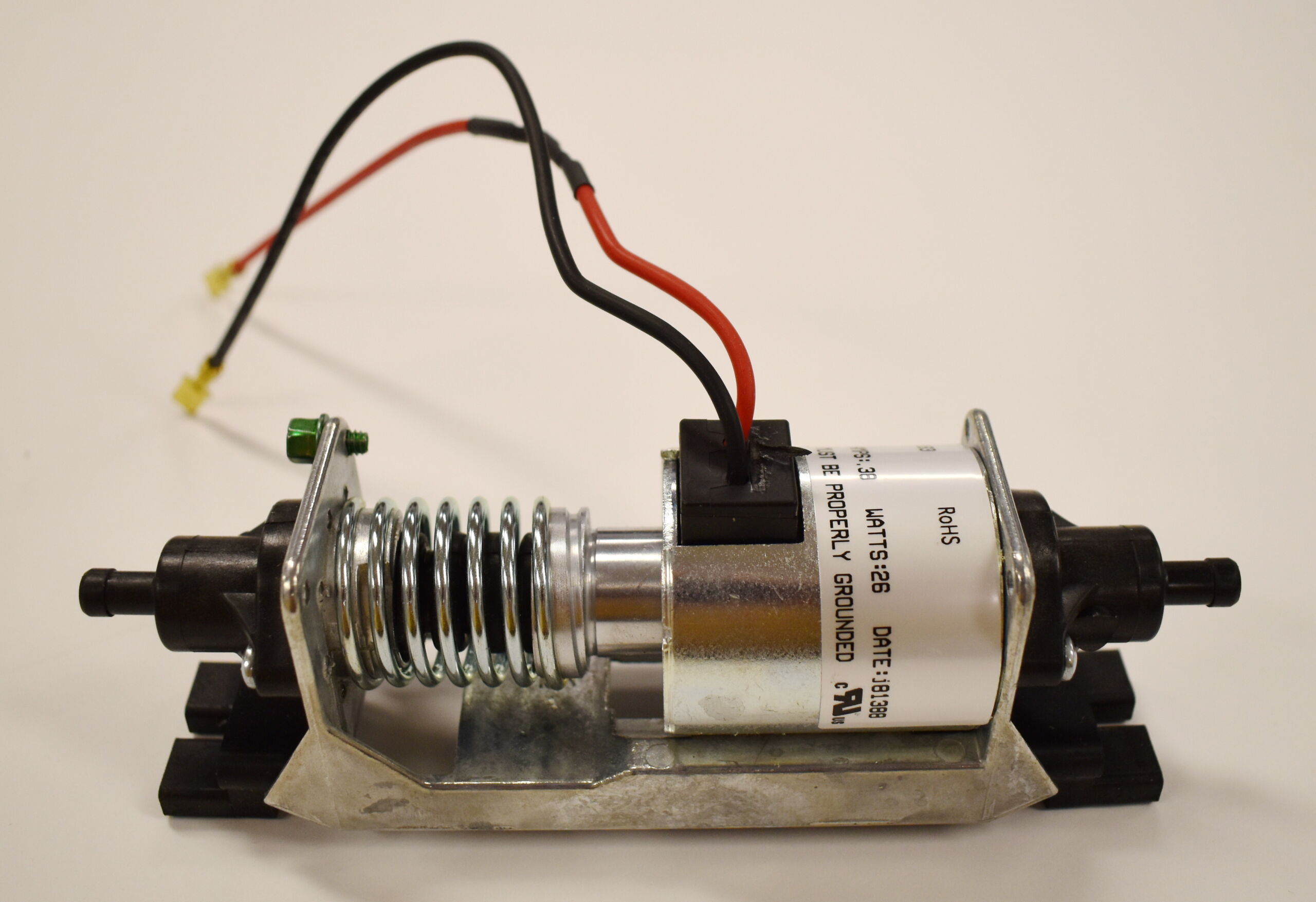

No. 3520 / Pump Assembly (Case of 1)
For Model No. 1211X
2-Lbs
10X5X5
1
No. 3521 / Pump Assembly (Case of 6)
For Model No. 1211X
13-Lbs
12X12X12
6

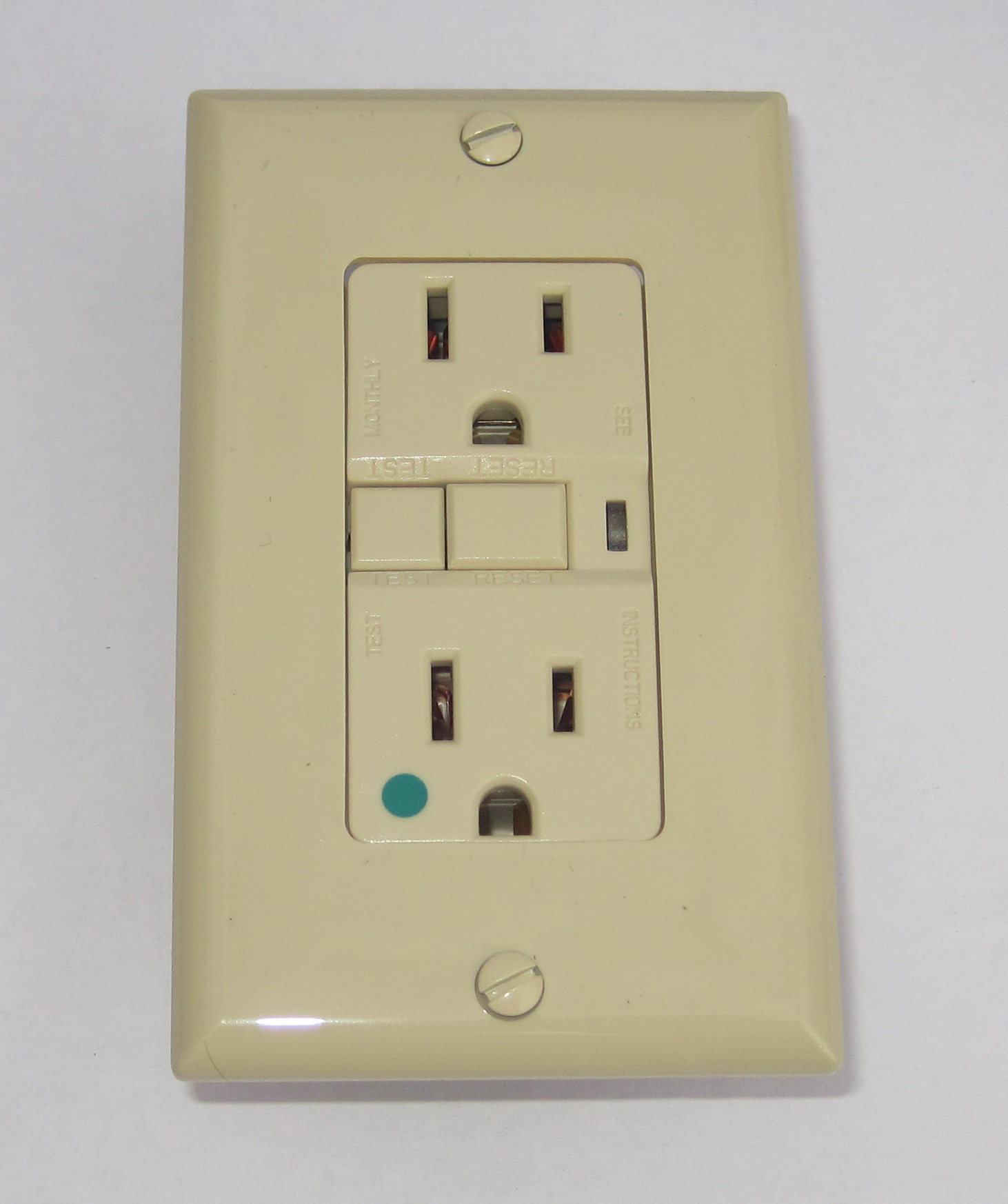

No. 3900 / Wall Socket GFCI 15A-125V 60Hz
Hospital Grade
Cooper #VGFH15V Green Dot Ultrasonic Compatible
1-Lbs
10X5X5
1

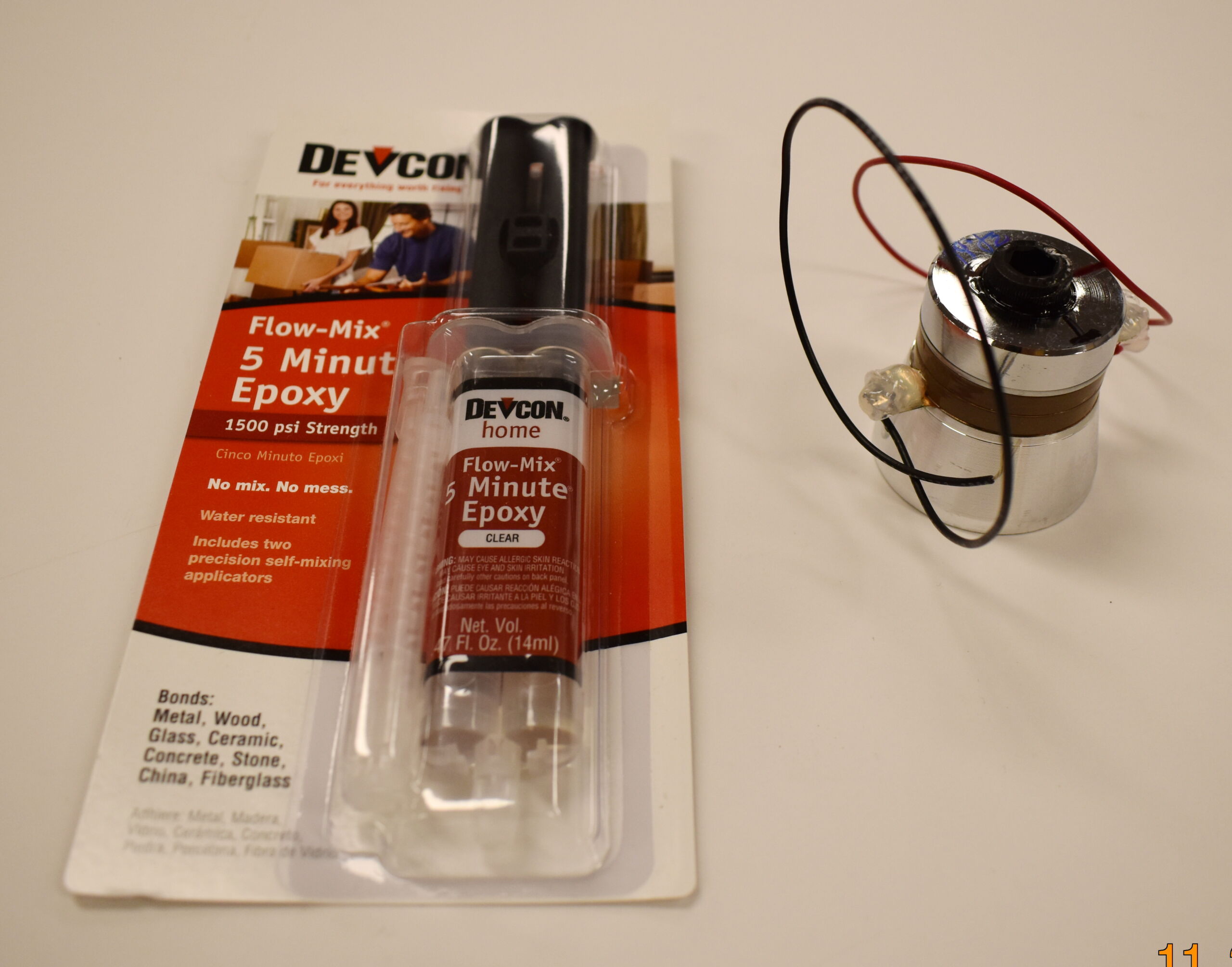

No. 4001 / Transducer Kit
For Model No. 1211X, 1312, and 1320
3-Lbs
10X5X5
1

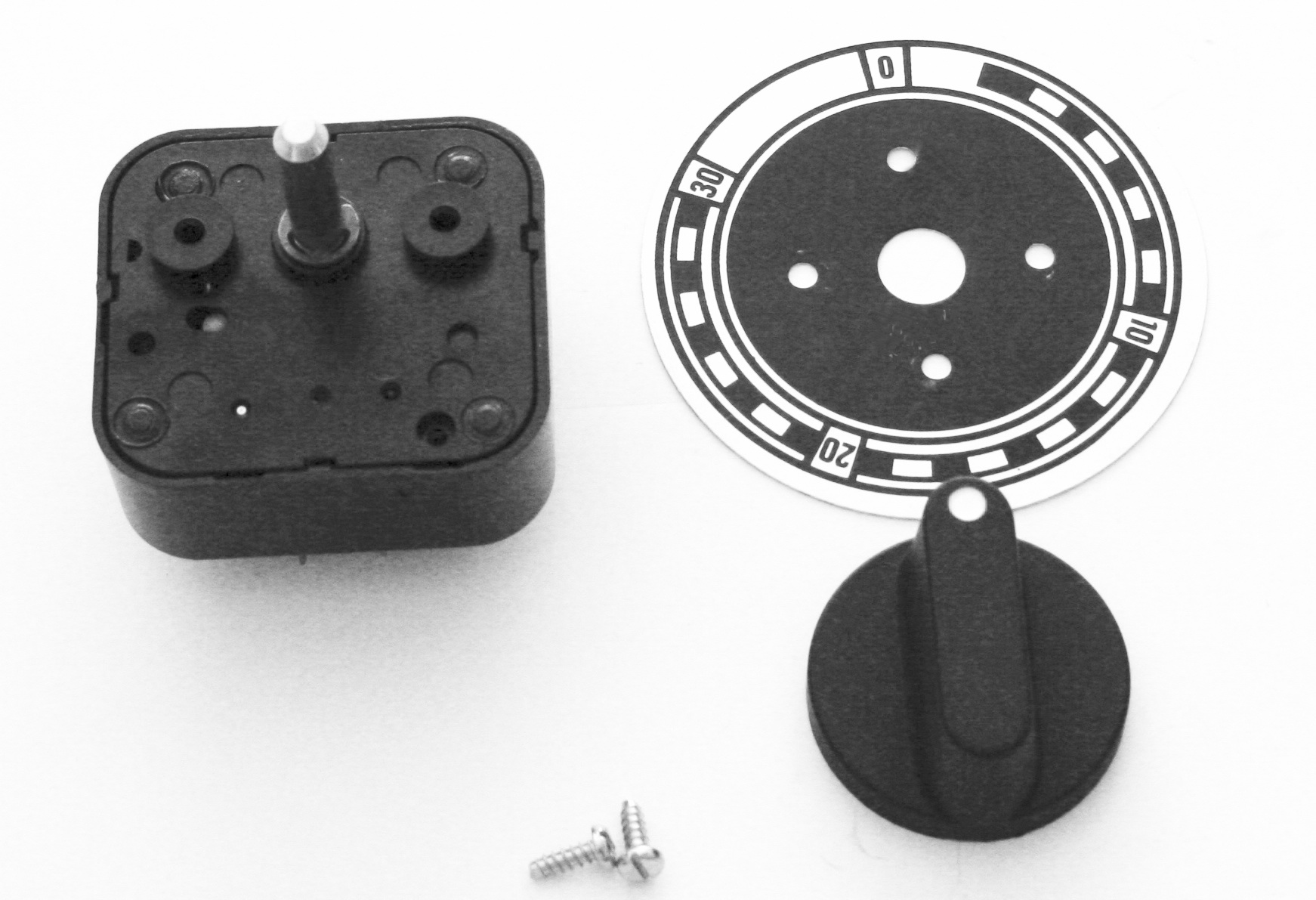

No. 4005 / Timer Switch 30 Minute
For Model No. 1211X, 1312, and 1320
2-Lbs
10X5X5
1

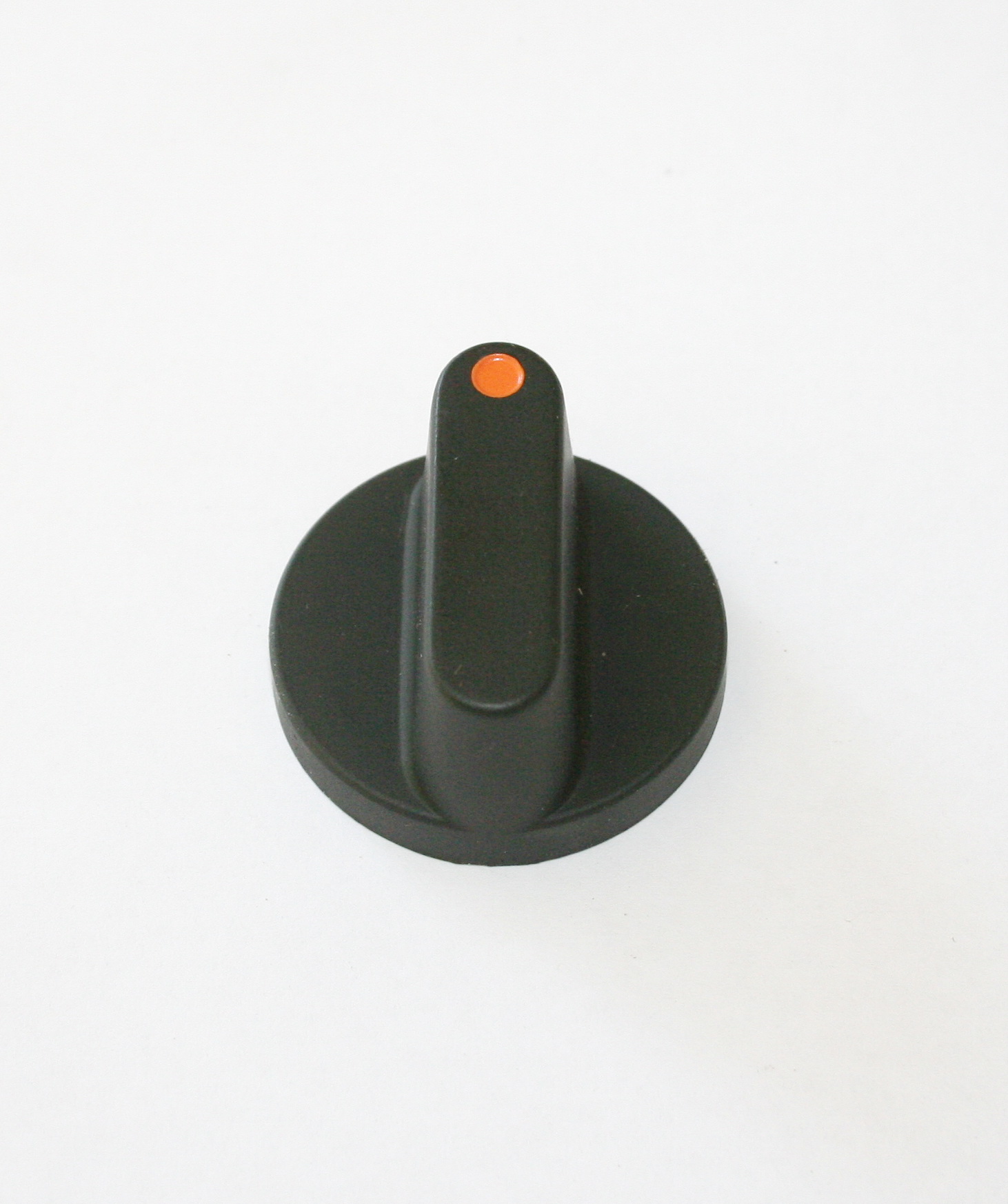

No. 4006 / Timer Switch Knob
For Model No. 1211X, 1312, and 1320
1-Lbs
10X5X5
1

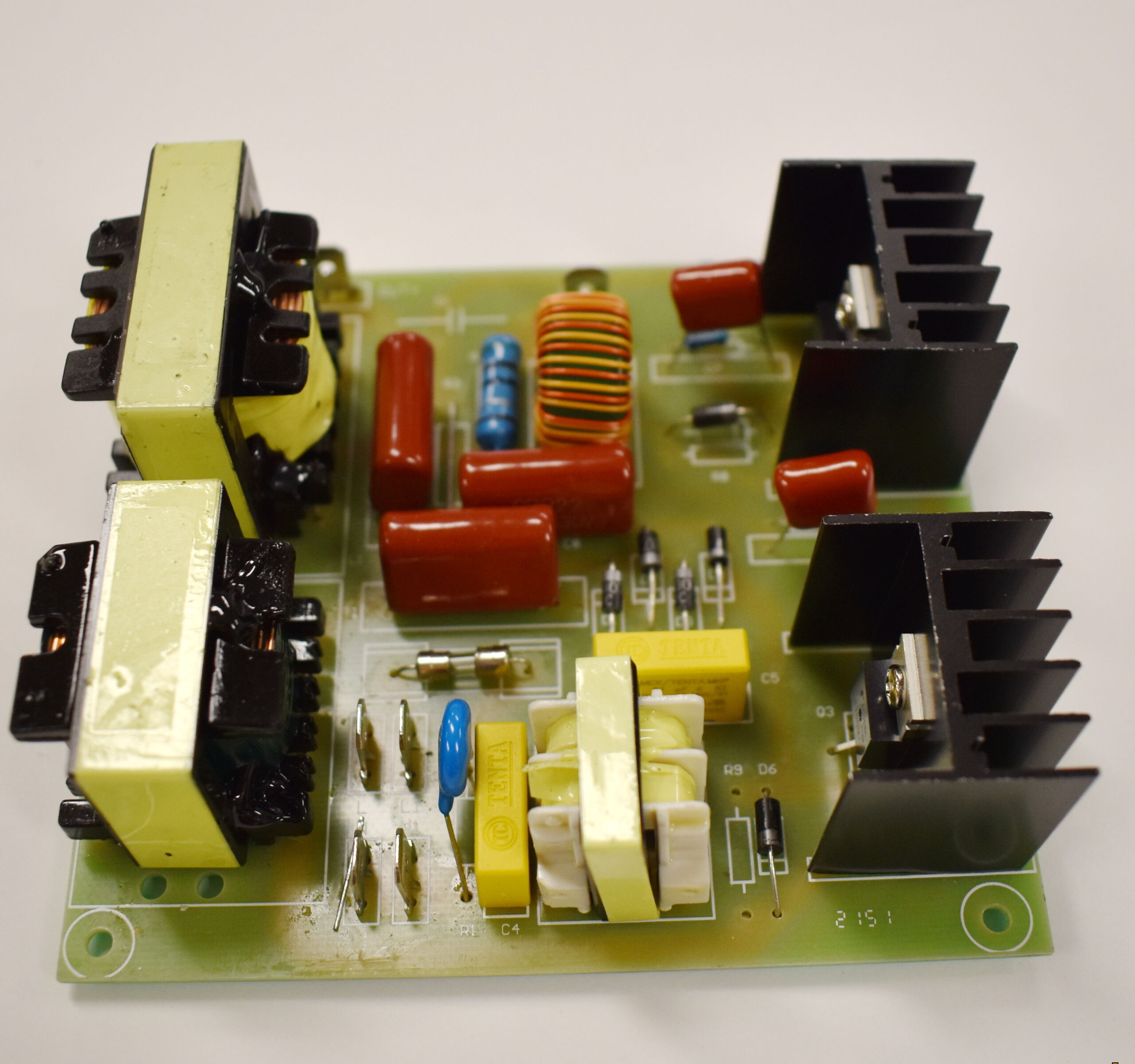

No. 4008 / Circuit Board
For Model No. 1211X, 1312, and 1320
1-Lbs
10X5X5
1

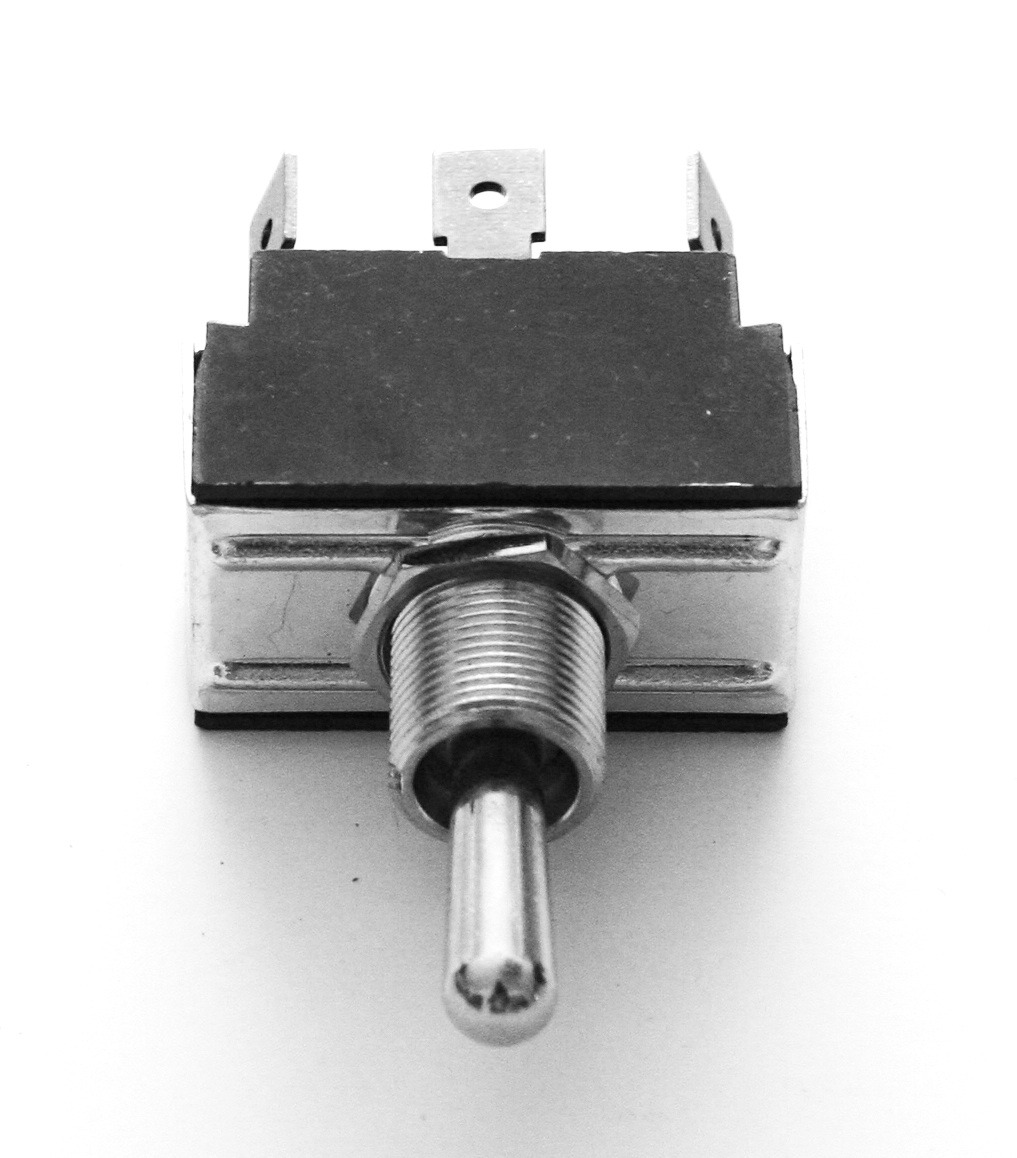

No. 4010 / Pump Switch
For Model No. 1211X
1-Lbs
10X5X5
1

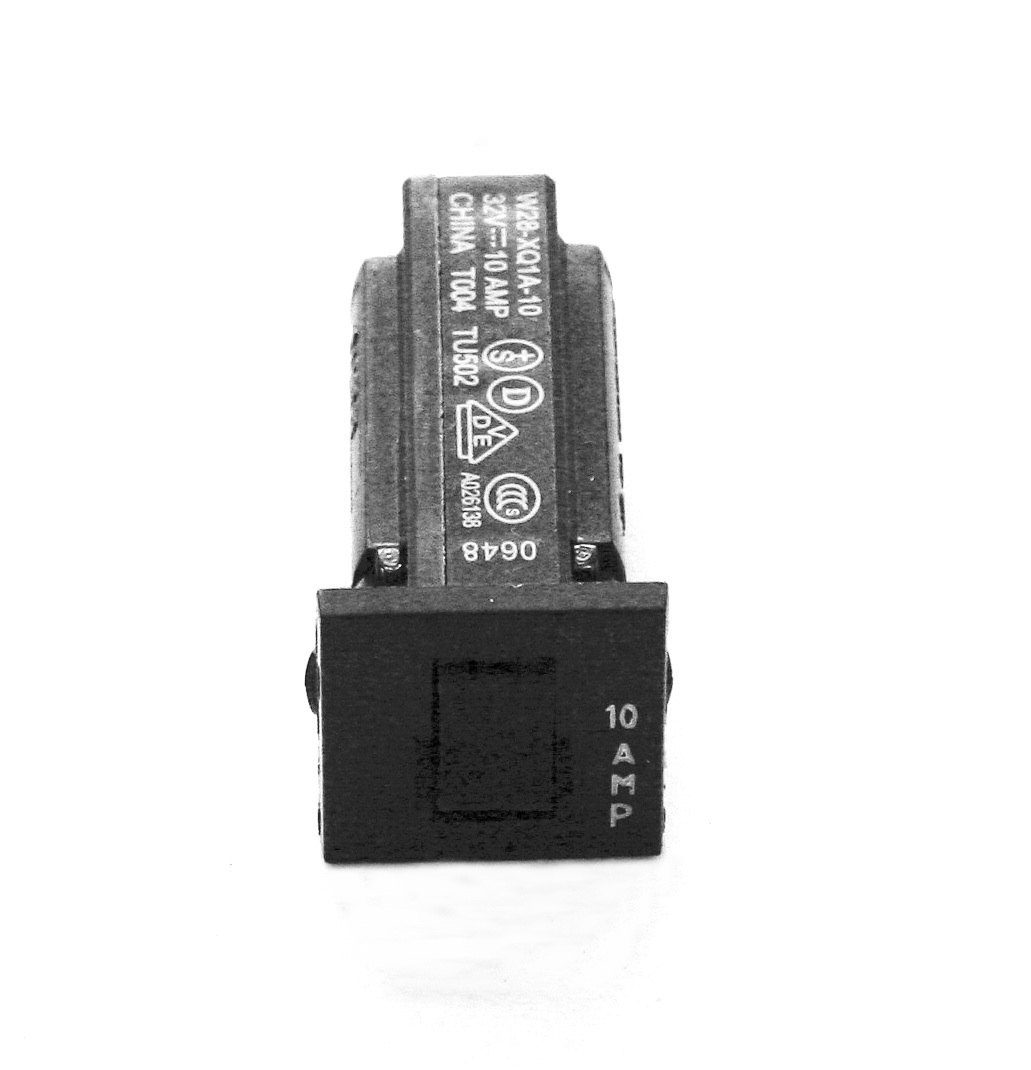

No. 4015 / Circuit Breaker 10 Amp
For Model No. 1211X
1-Lbs
10X5X5
1

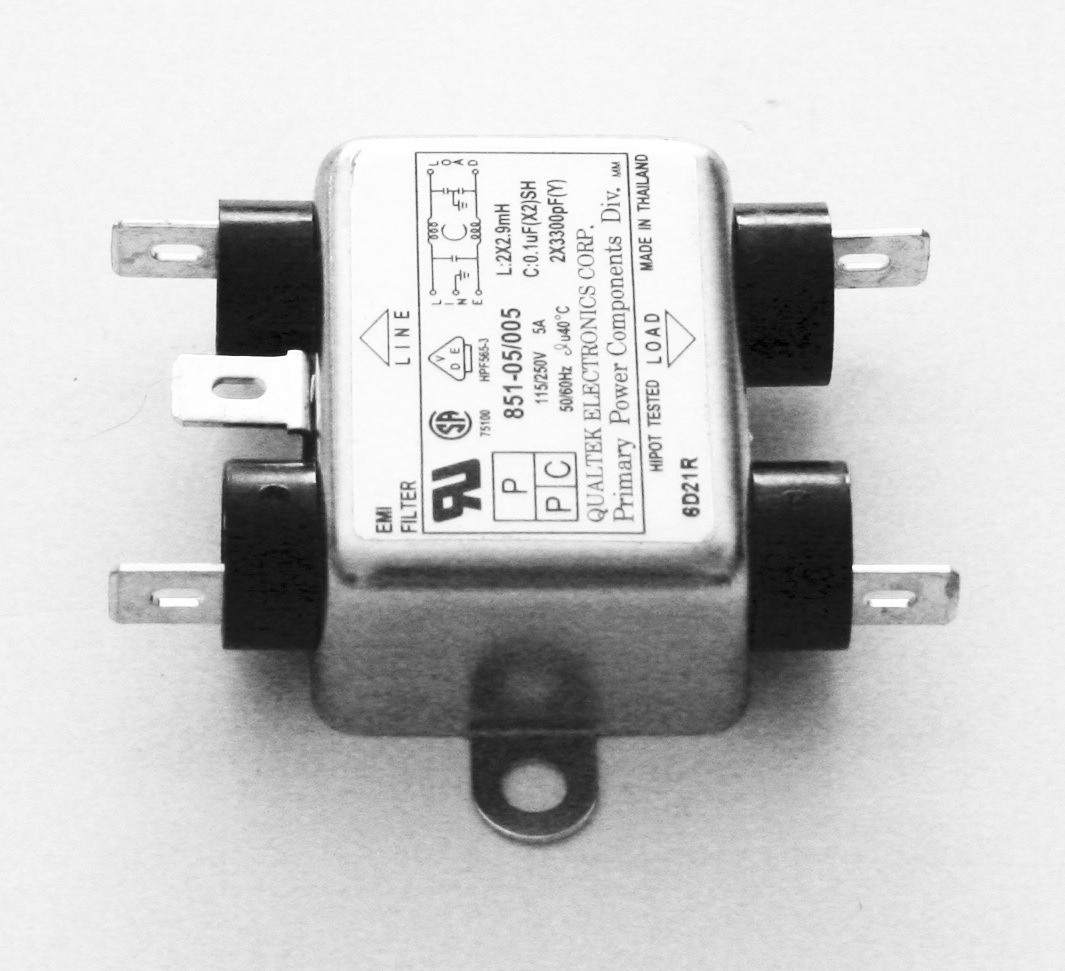

No. 4020 / EMI Filter
For Model No. 1320
2-Lbs
10X5X5
1

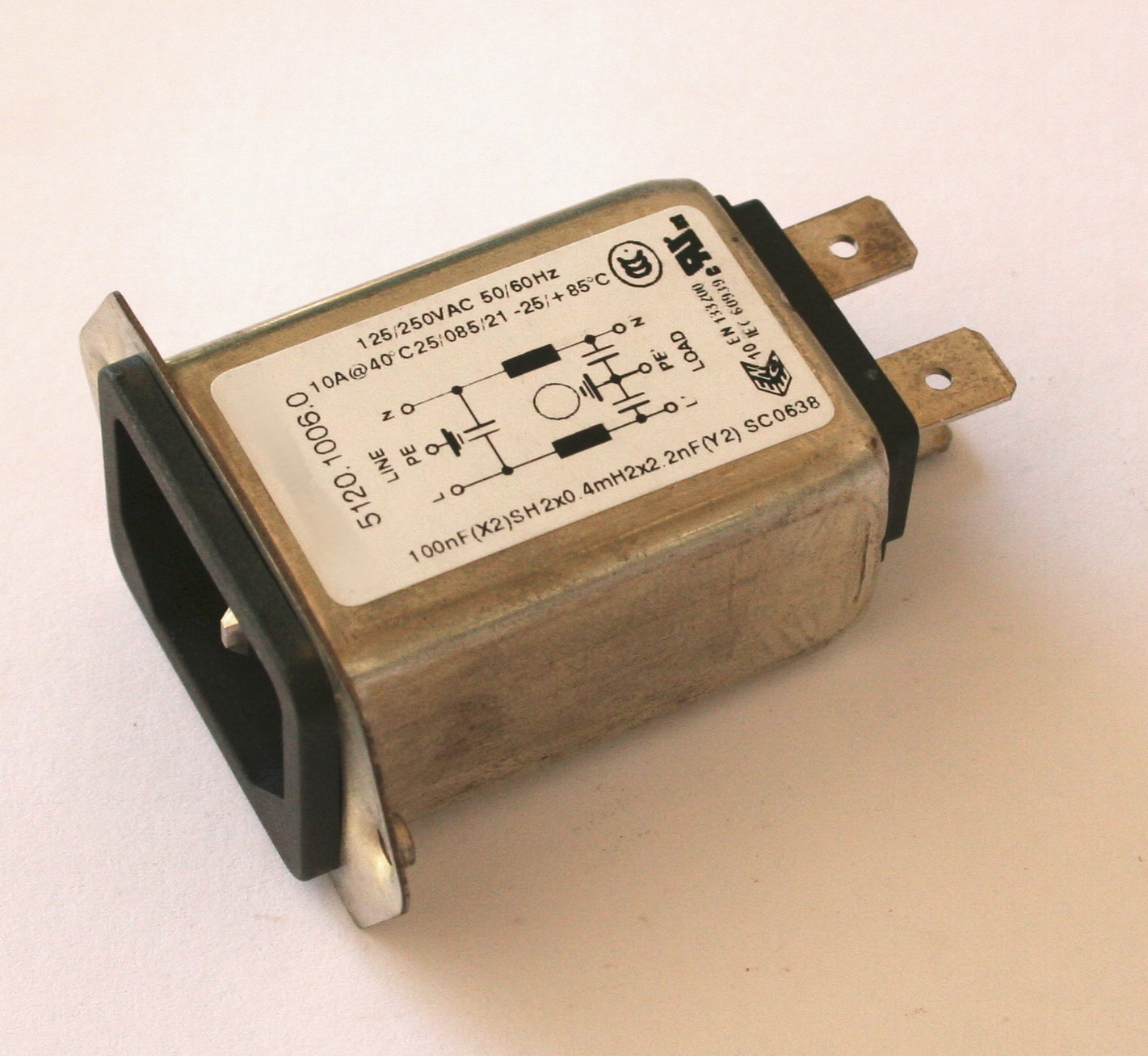

No. 4021 / EMI Filter
For Model No. 1211X
1-Lbs
12X9X3
1

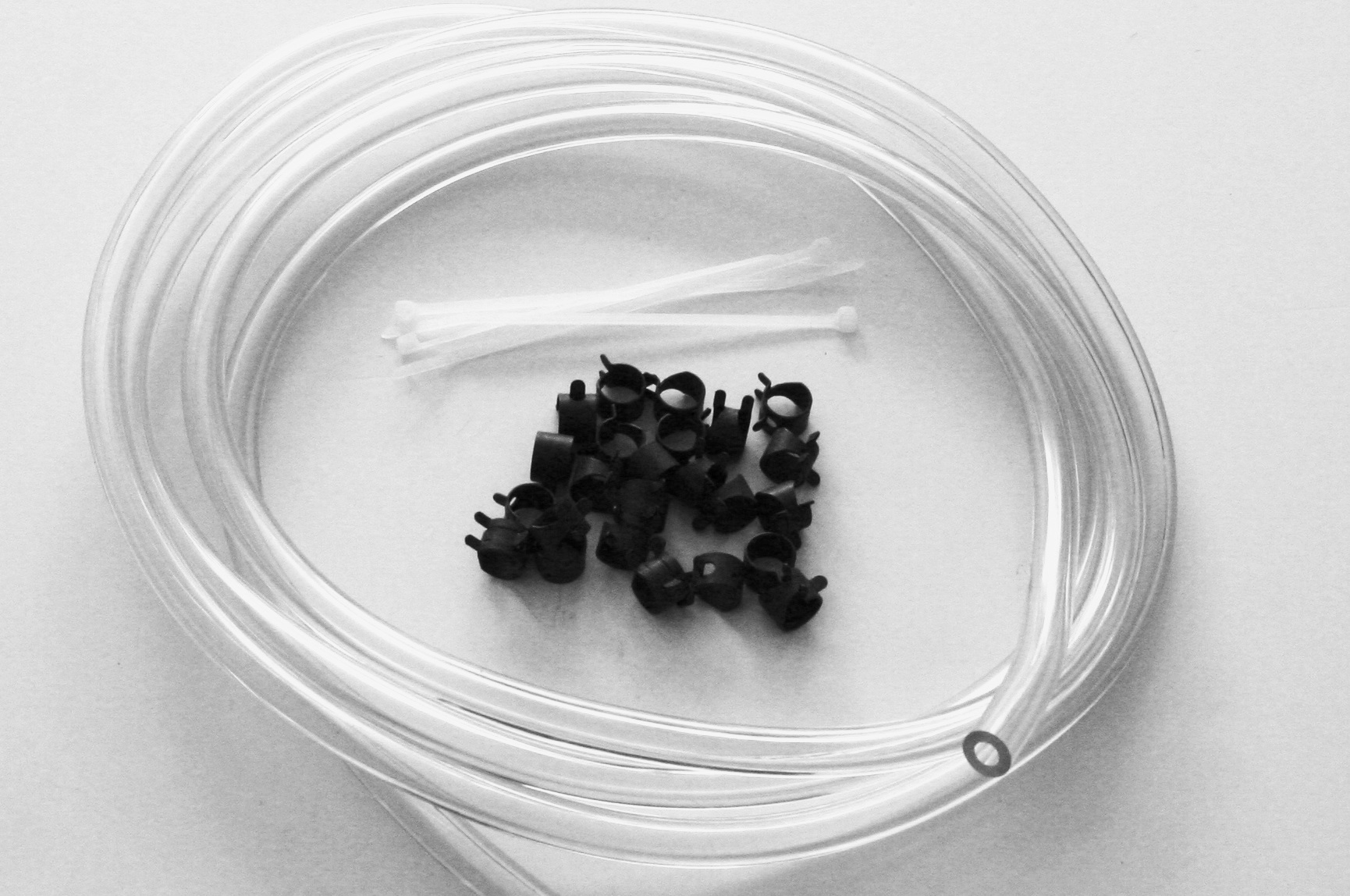

No. 4040 / Pump Tubing Set
(Clear PVC 3/16”ID X 6/16”OD)
For Model No. 1211X
1-Lbs
10X7X3
12 ft

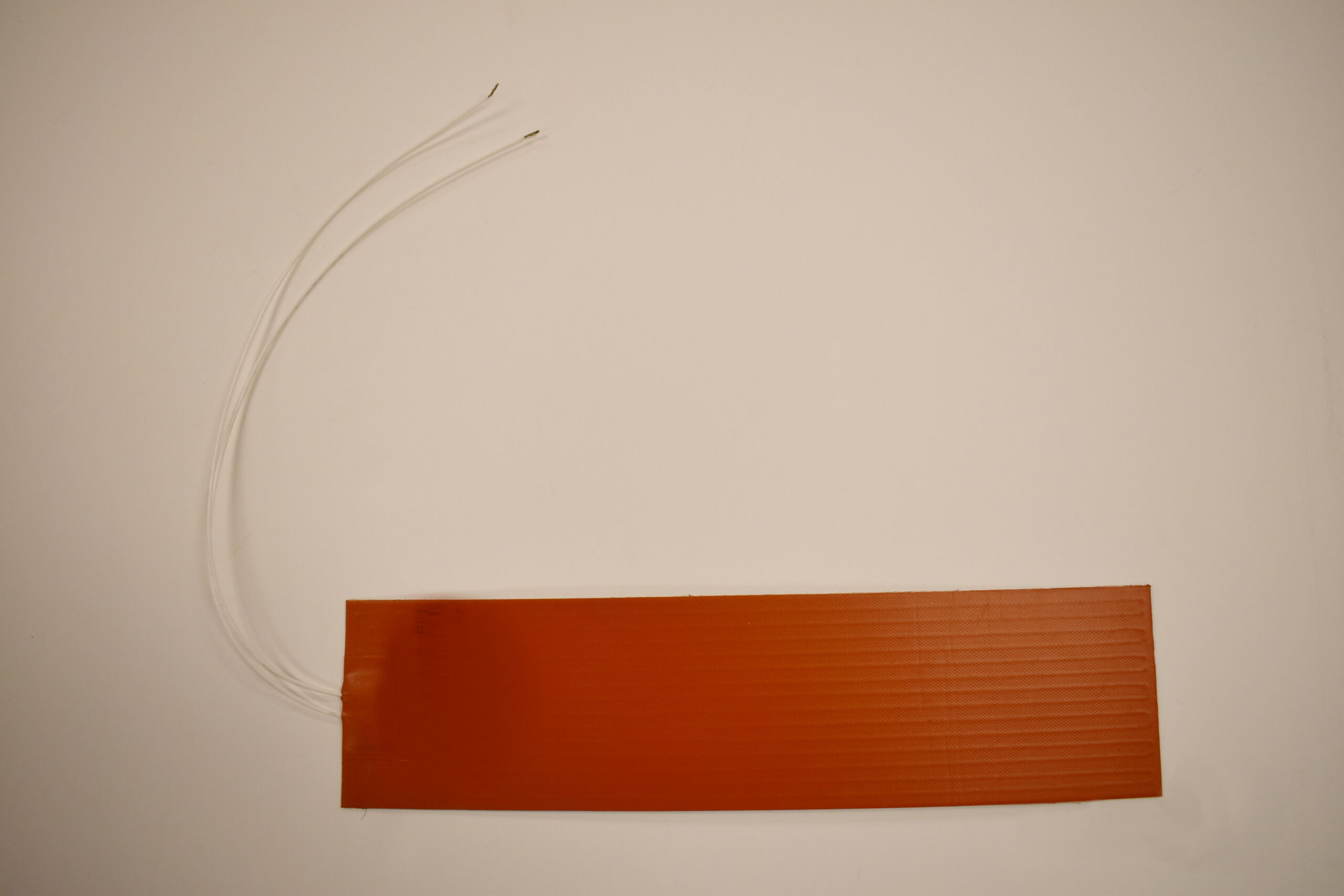

No. 4320 / Heater Pad (12” X 3”)
For Model No. 1320
1-Lbs
10X5X5
1

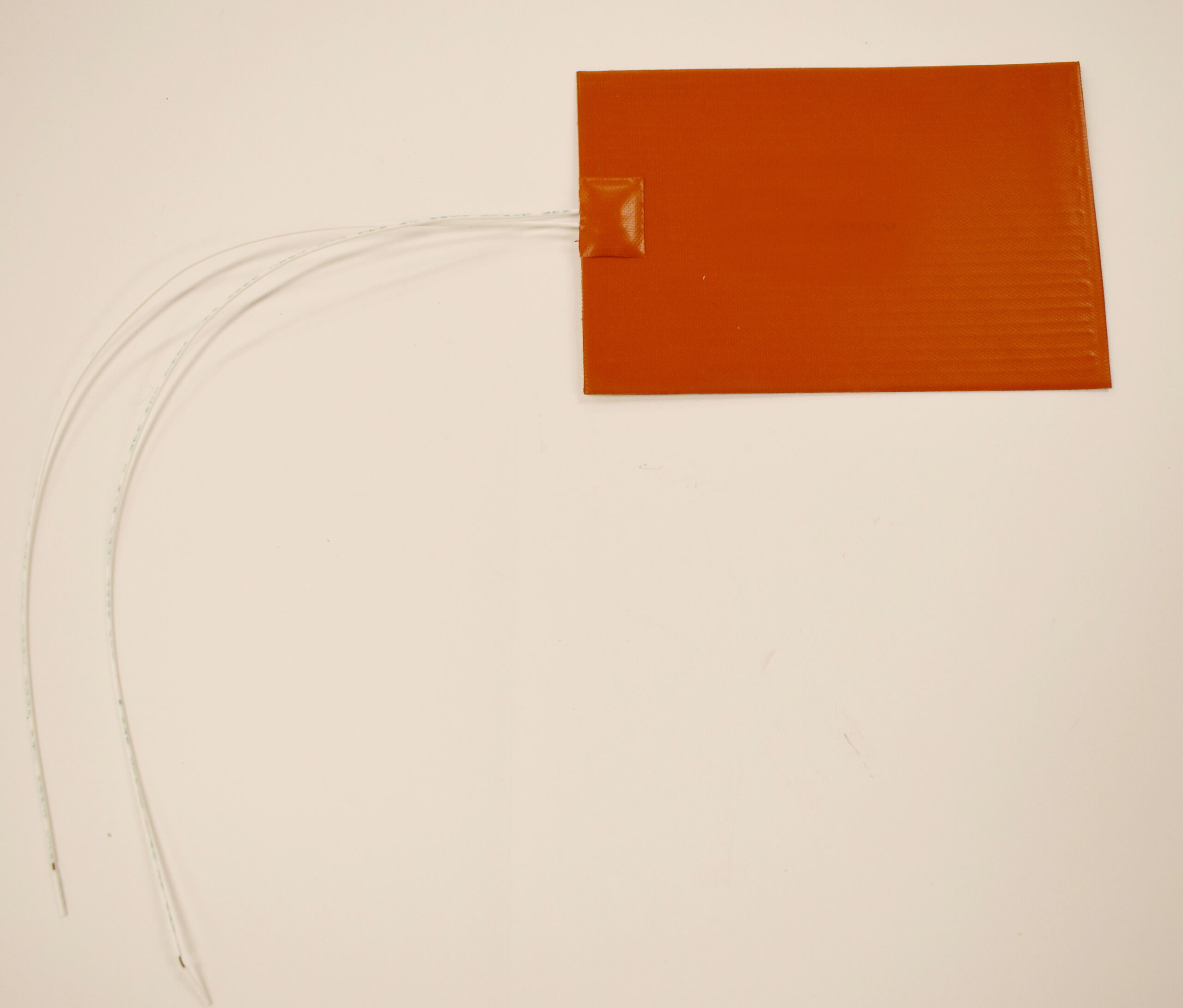

No. 4321 / Heater Pad (6” X 4”)
For Model No. 1211X
1-Lbs
10X5X5
1
